9007AO12
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

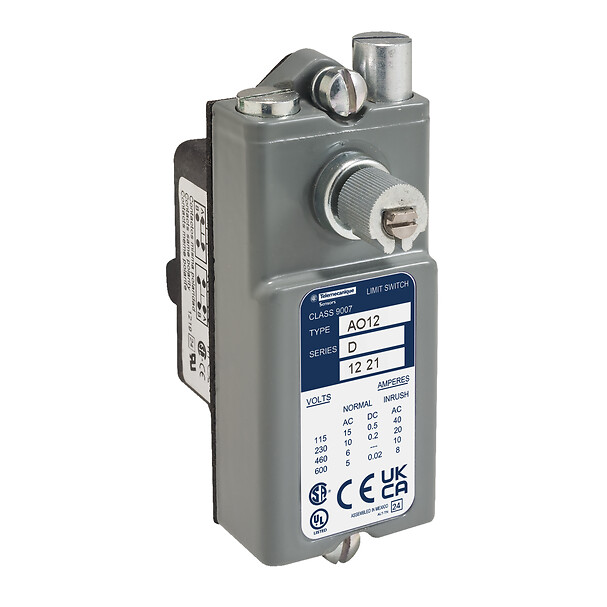

Limit switch, 9007, 600 VAC 15amp ao +options
جزئیات محصول
| وزن | 244.94 گرم |
|---|---|
| ابعاد | 10.668 × 7.112 × 4.064 سانتیمتر |
| Range of product |
9007 |
| Series name |
Heavy duty |
| Product or component type |
Limit switch |
| Device short name |
9007AW |
| Product specific applicatio |
Precision |
| Body type |
Fixed |
| Mounting mode |
Open type |
| Operator profile |
Rotary head |
| Material |
Metal |
| Body material |
Cast zinc |
| Operator material |
Cast zinc |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Spring return without operating lever cast zinc |
| Switch actuation |
CCW convertible to CWfrom left convertible to right |
| Type of approach |
1 direction programmable ,Lateral approach |
| Electrical connection |
1-2 cables for screw-clamp terminals (AWG 22…AWG 12) |
| Contacts type and compositi |
NC-NO ,switch function: SPDT-DB |
| Contact form |
Form Z |
| Contact operation |
Snap action |
| Contacts material |
Silver contacts |
| Positive opening |
Without |
| Terminals description ISO n |
(3-4)NO(1-2)NC |
| Repeat accuracy |
+/- 0.002 in linear travel of cam on 1.38 in long lever arm |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Protective treatment |
Epoxy powder coat |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.064 CENTIMETER |
| Package 1 width |
7.112 CENTIMETER |
| Package 1 length |
10.668 CENTIMETER |
| Package 1 weight |
244.94 GRAM |
