9007AO36
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

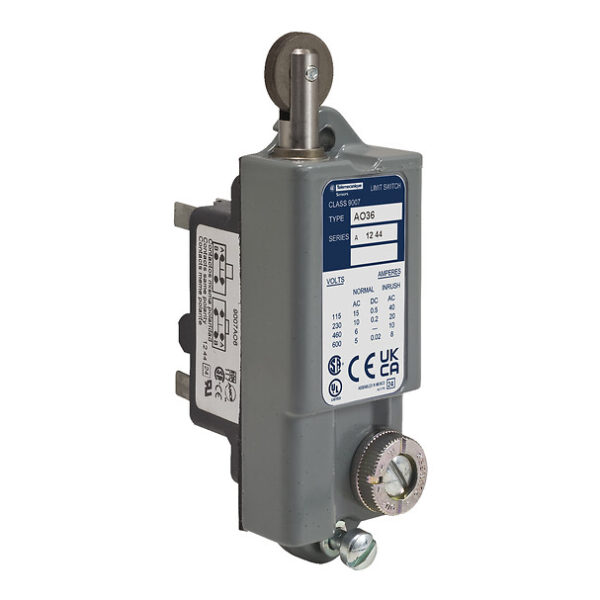

Limit switch, 9007, 600 VAC 15amp ao +options
جزئیات محصول
| وزن | 263.084 گرم |
|---|---|
| ابعاد | 7.112 × 13.208 × 6.096 سانتیمتر |
| Range of product | 9007 |
| Series name | Heavy duty |
| Product or component type | Limit switch |
| Device short name | 9007AW |
| Product specific applicatio | Precision |
| Body type | Plug-in |
| Mounting mode | Open type |
| Operator profile | Plunger head |
| Material | Metal |
| Body material | Cast zinc |
| Operator material | Cast zinc |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger steel with micrometer adjustment |
| Switch actuation | By 30° cam |
| Type of approach | 2 directions, Traverse approach |
| Electrical connection | 1-2 cables for screw-clamp terminals (AWG 22…AWG 12) |
| Contacts type and compositi | NC-NO, switch function: SPDT-DB |
| Contact form | Form Z |
| Contact operation | Snap action |
| Contacts material | Silver contacts |
| Positive opening | Without |
| Terminals description ISO n | (3-4)NO(1-2)NC |
| Repeat accuracy | +/- 0.001 in |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | Epoxy powder coat |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 6.096 CENTIMETER |
| Package 1 width | 13.208 CENTIMETER |
| Package 1 length | 7.112 CENTIMETER |
| Package 1 weight | 263.084 GRAM |
