9007C54GD
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

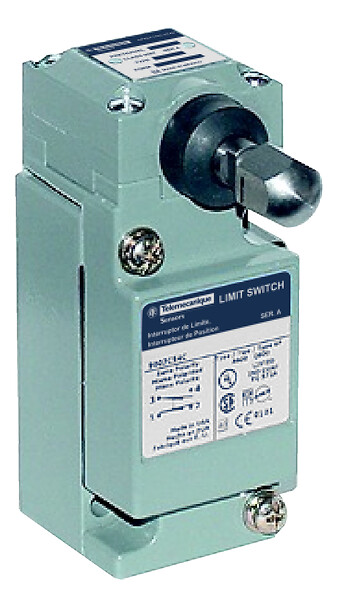

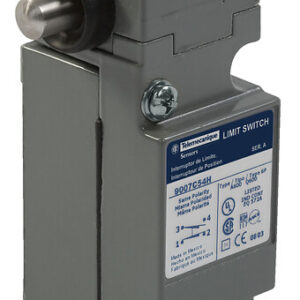

Limit switch, 9007, 600 V 10amp c +options
جزئیات محصول
| وزن | 566.991 گرم |
|---|---|
| ابعاد | 10.795 × 7.112 × 5.08 سانتیمتر |
| Range of product |
9007 |
| Series name |
Heavy duty |
| Product or component type |
Limit switch |
| Product specific applicatio |
Standard box |
| Device short name |
9007C |
| Body type |
Plug-in |
| Head type |
Plunger head |
| Material |
Metal |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Stainless steel spring return side plunger (adjustable) |
| Switch actuation |
On end |
| Type of approach |
1 direction ,Lateral approach |
| Electrical connection |
1-2 ,Screw-clamp terminals (AWG 22…AWG 12) |
| Cable entry |
1 entry for 1/2" – 14 NPT conforming to ANSI B1.20.1 |
| Contacts type and compositi |
NC-NO |
| Contact operation |
Snap action |
| Positive opening |
Without |
| Body material |
Zinc |
| Head material |
Zinc |
| Function available |
Not applicable |
| Switch function |
SPDT-DB |
| Contact form |
Form Z |
| Contacts material |
Silver contacts |
| Terminals description ISO n |
(3-4)NO(1-2)NC |
| Repeat accuracy |
+/- 0.001 in linear travel of cam |
| Local signalling |
without |
| Shock resistance |
60 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 ,NEMA 12 conforming to Nema type 250 ,NEMA 13 conforming to Nema type 250 ,NEMA 2 conforming to Nema type 250 ,NEMA 4 conforming to Nema type 250 ,NEMA 6 conforming to Nema type 250 ,NEMA 6P conforming to Nema type 250 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Electrical shock protection |
Class 0 conforming to IEC 61140 |
| Environmental characteristi |
Standard environment |
| Protective treatment |
Epoxy powder coat |
| Package 1 height |
5.08 CENTIMETER |
| Package 1 width |
7.112 CENTIMETER |
| Unit type of package 1 |
PCE |
| Package 1 length |
10.795 CENTIMETER |
| Number of units in package |
1 |
| Package 1 weight |
566.991 GRAM |
