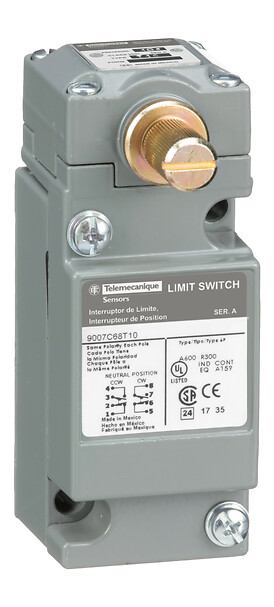

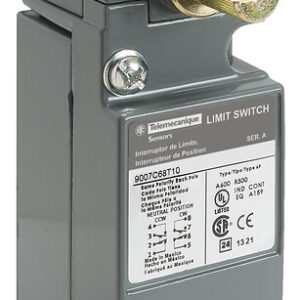

9007C68T10
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Limit switch, 9007, 600 V 10amp c +options
جزئیات محصول
| وزن | 566.991 گرم |
|---|---|
| ابعاد | 4.318 × 10.668 × 7.112 سانتیمتر |
| Range of product |
9007 |
| Series name |
Heavy duty |
| Product or component type |
Limit switch |
| Device short name |
9007C |
| Product specific applicatio |
Standard box |
| Body type |
Plug-in |
| Head type |
Rotary head |
| Material |
Metal |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Zinc spring return without operating lever (-)9007C lever |
| Type of approach |
2 directions ,Lateral approach |
| Electrical connection |
1-2 ,Screw-clamp terminals (AWG 22…AWG 12) |
| Cable entry |
1 entry for 1/2" – 14 NPT conforming to ANSI B1.20.1 |
| Contacts type and compositi |
2(NC-NO) |
| Positive opening |
Without |
| Switch actuation |
CW and CCWfrom left and right |
| Contact operation |
Snap action |
| Body material |
Zinc |
| Contacts material |
Silver contacts |
| Head material |
Zinc |
| Function available |
Neutral position |
| Switch function |
2 SPDT-DB |
| Contact form |
Form Z |
| Terminals description ISO n |
(7-8)NO(3-4)NO(1-2)NC(5-6)NC |
| Repeat accuracy |
+/- 0.002 in linear travel of cam |
| Local signalling |
without |
| Shock resistance |
60 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 ,NEMA 12 conforming to Nema type 250 ,NEMA 13 conforming to Nema type 250 ,NEMA 2 conforming to Nema type 250 ,NEMA 4 conforming to Nema type 250 ,NEMA 6 conforming to Nema type 250 ,NEMA 6P conforming to Nema type 250 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Electrical shock protection |
Class 0 conforming to IEC 61140 |
| Environmental characteristi |
Standard environment |
| Protective treatment |
Epoxy powder coat |
| Package 1 height |
7.112 CENTIMETER |
| Package 1 width |
10.668 CENTIMETER |
| Package 1 length |
4.318 CENTIMETER |
| Unit type of package 1 |
PCE |
| Package 1 weight |
566.991 GRAM |
| Unit type of package 2 |
CAR |
| Number of units in package |
10 |
| Package 2 height |
11.938 CENTIMETER |
| Package 2 width |
14.986 CENTIMETER |
| Package 2 length |
22.098 CENTIMETER |
| Package 2 weight |
5.851 KILOGRAM |
