9007CB31
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

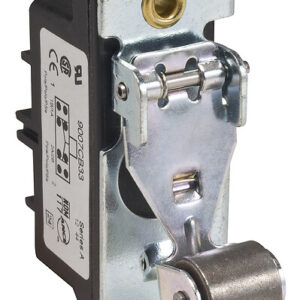

Snap limit switch, 9007, 600 V 10amp cb +options
جزئیات محصول
| وزن | 81.6 گرم |
|---|---|
| ابعاد | 15.2 × 10.2 × 2.5 سانتیمتر |
| Range of product |
9007 |
| Series name |
Heavy duty |
| Product or component type |
Snap limit switch |
| Device short name |
9007AO/CO |
| Body type |
Fixed |
| Mounting mode |
Not applicable |
| Operator profile |
Plunger head |
| Material |
Metal |
| Body material |
Cast zinc |
| Operator material |
Cast zinc |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return roller lever plunger metal RH bracket + 0.22" roller |
| Switch actuation |
By 30° cam |
| Type of approach |
2 directions ,Traverse approach |
| Electrical connection |
1-2 cables for 6 binder head screw terminals (AWG 22…AWG 14) |
| Contact operation |
Snap action |
| Contacts type and compositi |
2(NC-NO) ,switch function: DPDT-DB |
| Contact form |
Form ZZ |
| Contacts material |
Silver contacts |
| Positive opening |
Without |
| Terminals description ISO n |
(7-8)NO(3-4)NO(1-2)NC(5-6)NC |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.5 CENTIMETER |
| Number of units in package |
1 |
| Package 1 width |
10.2 CENTIMETER |
| Package 1 length |
15.2 CENTIMETER |
| Package 1 weight |
81.6 GRAM |
