9007CO6
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

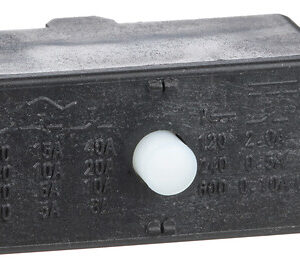

Snap basic limit switch, 9007, plunger, 2 NO, plug in
جزئیات محصول
| وزن | 226.796 گرم |
|---|---|
| ابعاد | 16.387 × 2.54 × 6.452 سانتیمتر |
| Range of product |
9007 |
| Series name |
Heavy duty |
| Product or component type |
Snap basic limit switch |
| Device short name |
9007AO/CO |
| Body type |
Plug-in |
| Mounting mode |
Not applicable |
| Operator profile |
Plunger head |
| Body material |
Cast zinc |
| Material |
Metal |
| Operator material |
Cast zinc |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger plastic with thermoplastic end |
| Switch actuation |
On end |
| Type of approach |
1 direction ,Vertical approach |
| Electrical connection |
1-2 cables for 6 binder head screw terminals (AWG 22…AWG 14) |
| Contact operation |
Snap action |
| Contacts material |
Silver contacts |
| Contacts type and compositi |
2 NO ,switch function: DPST-NO-DB |
| Contact form |
Form AA |
| Positive opening |
Without |
| Terminals description ISO n |
(7-8)NO(3-4)NO |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
6.452 CENTIMETER |
| Package 1 width |
2.54 CENTIMETER |
| Package 1 length |
16.387 CENTIMETER |
| Package 1 weight |
226.796 GRAM |
