قیمت محصول
توضیحات

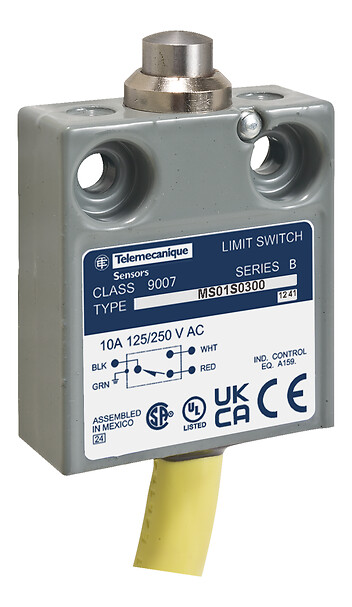

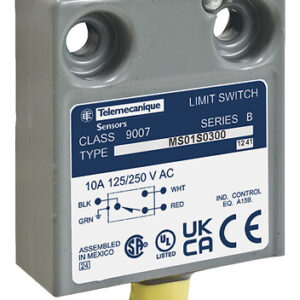

Limit switch, 9007, 240 VAC 10amp ms +options
جزئیات محصول
| وزن | 893.577 گرم |
|---|---|
| ابعاد | 24.581 × 3.81 × 9.677 سانتیمتر |
| Range of product |
9007 |
| Series name |
Miniature potted |
| Product or component type |
Limit switch |
| Device short name |
9007MS/ML |
| Sensor design |
Miniature |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Metal |
| Body material |
Cast zinc |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger stainless steel – |
| Type of approach |
1 direction ,Vertical approach |
| Switch actuation |
On end |
| Contacts type and compositi |
NC-NO |
| Switch function |
SPDT |
| Contact form |
Form C |
| Contacts material |
Silver contacts |
| Contact operation |
Snap action |
| Positive opening |
Without |
| Electrical connection |
Pre-wired cable bottom |
| Type of cable |
18 ft ,SJTO cable (AWG 16) ,yellow |
| Terminals description ISO n |
(black)com(red)NC(green-yellow)gnd(white)NO |
| Wire insulation material |
PVC |
| Marking |
CSACEUL |
| Shock resistance |
35 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
10 gn (f= 75-1200 Hz) conforming to IEC 60529 |
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250 ,NEMA 2 conforming to Nema type 250 ,NEMA 4 conforming to Nema type 250 ,NEMA 6 conforming to Nema type 250 ,NEMA 6P conforming to Nema type 250 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Protective treatment |
Epoxy powder coat |
| Product certifications |
CSACEUL |
| Standards |
LR 25490 Class 32 11 03E78403 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
9.677 CENTIMETER |
| Package 1 width |
3.81 CENTIMETER |
| Package 1 length |
24.581 CENTIMETER |
| Package 1 weight |
893.577 GRAM |
