9012GAR6
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

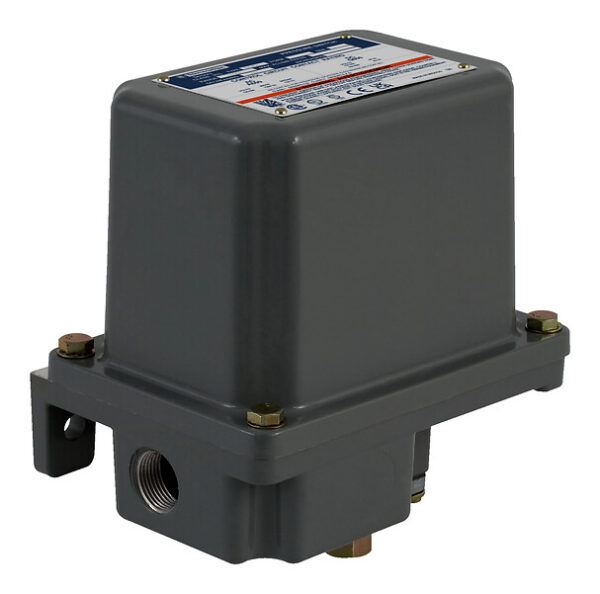

Pressure switch 9012G, adjustable scale, 2 thresholds, 5.0 to 250 PSIG
جزئیات محصول
| وزن | 8392 گرم |
|---|---|
| ابعاد | 196.645 × 30.48 × 77.419 سانتیمتر |
| Range of product |
9012G |
| Pressure sensor type |
Electromechanical pressure switch |
| Pressure sensor name |
9012G |
| Maximum pressure |
750 psi |
| Contacts type and compositi |
Form Z ,NC-NO ,silver nickel contacts ,snap action ,SPDT-DB |
| Controlled fluid |
air (-40-250 °F) ,Hydraulic oil (-40-250 °F) ,non-corrosive gas (-40-250 °F) ,non-corrosive liquids (-40-250 °F) |
| Fluid connection type |
0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of ope |
Regulation between 2 thresholds |
| Scale type |
Adjustable differential |
| Local display |
Without |
| Cable entry |
0.5 inch NPT conduit entrance |
| Terminal block type |
4 screw terminals |
| Electrical connection |
AWG 22…AWG 12 ,Screw-clamp terminals |
| Electrical circuit type |
Control circuit |
| Local signalling |
Without: |
| Setting |
Internal |
| Enclosure material |
Cast aluminium |
| Pressure actuator |
Diaphragm nitrile (Buna-N) |
| Operating position |
Any position |
| Materials in contact with f |
Nitrile (Buna-N) |
| Operating rate |
120 cyc/mn |
| Vibration resistance |
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance |
50 gn conforming to IEC 58-2-27 |
| Standards |
CSA C22.2 No 14CEUL 508 |
| Product certifications |
UL listed HazLocCSA LR25490 class 3211 03UL listedCSA LR26817 class 3218 02 |
| NEMA degree of protection |
NEMA 7/9 conforming to UL 698 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
77.419 CENTIMETER |
| Package 1 width |
30.48 CENTIMETER |
| Package 1 length |
196.645 CENTIMETER |
| Package 1 weight |
8.392 KILOGRAM |
