قیمت محصول
توضیحات

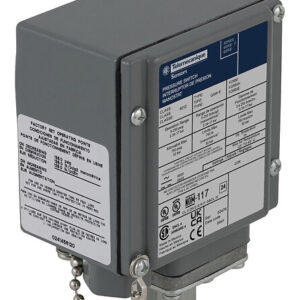

Pressure switch 9012G, adjustable scale, 2 thresholds, 5.0 to 250 PSIG
جزئیات محصول
| وزن | 1361 گرم |
|---|---|
| ابعاد | 155.677 × 24.13 × 61.29 سانتیمتر |
| Range of product |
9012G |
| Pressure sensor type |
Electromechanical pressure switch |
| Pressure sensor name |
9012G |
| Maximum pressure |
750 psi |
| Contacts type and compositi |
Form Z ,NC-NO ,silver nickel contacts ,snap action ,SPDT-DB |
| Controlled fluid |
air (-40-250 °F) ,Hydraulic oil (-40-250 °F) ,non-corrosive gas (-40-250 °F) ,non-corrosive liquids (-40-250 °F) |
| Fluid connection type |
0.25 inch BS2779 parallel pipe thread conforming to UL 508 |
| Pressure switch type of ope |
Regulation between 2 thresholds |
| Scale type |
Adjustable differential |
| Local display |
Without |
| Cable entry |
20 mm BS4568 conduit entrance |
| Terminal block type |
4 screw terminals |
| Electrical connection |
AWG 22…AWG 12 ,Screw-clamp terminals |
| Electrical circuit type |
Control circuit |
| Local signalling |
Without: |
| Setting |
Internal |
| Enclosure material |
Die cast aluminium alloy 380 |
| Pressure actuator |
Diaphragm nitrile (Buna-N) |
| Operating position |
Any position |
| Materials in contact with f |
Zinc plated steelnitrile (Buna-N) |
| Operating rate |
120 cyc/mn |
| Vibration resistance |
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance |
50 gn conforming to IEC 58-2-27 |
| Standards |
CSA C22.2 No 14CEUL 508 |
| Product certifications |
UL listed MarineCSA LR25490 class 3211 03UL listed |
| NEMA degree of protection |
NEMA 4/4X/13 conforming to UL 50 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
61.29 CENTIMETER |
| Package 1 width |
24.13 CENTIMETER |
| Package 1 length |
155.677 CENTIMETER |
| Package 1 weight |
1.361 KILOGRAM |
