9012GMW2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

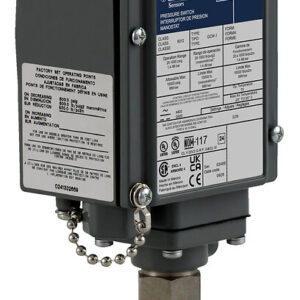

Pressure switch 9012G, fixed scale, 2 thresholds, 90 to 2900 PSIG
جزئیات محصول
| وزن | 1134 گرم |
|---|---|
| ابعاد | 155.677 × 24.13 × 61.29 سانتیمتر |
| Range of product |
9012G |
| Pressure sensor type |
Electromechanical pressure switch |
| Pressure sensor name |
9012G |
| Maximum pressure |
15000 psi |
| Contacts type and compositi |
2 SPDT-DB ,2(NC-NO) ,Form Z ,silver nickel contacts ,snap action |
| Controlled fluid |
air (-15-250 °F) ,Hydraulic oil (-15-250 °F) ,non-corrosive gas (-15-250 °F) ,selected corrosive gases (-15-250 °F) |
| Fluid connection type |
0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of ope |
Regulates two separate pressure thresholds |
| Scale type |
Fixed |
| Local display |
Without |
| Cable entry |
0.5 inch NPT conduit entrance |
| Terminal block type |
8 screw terminals |
| Electrical connection |
AWG 22…AWG 12 ,Screw-clamp terminals |
| Electrical circuit type |
Control circuit |
| Local signalling |
Without: |
| Setting |
Internal |
| Enclosure material |
Die cast aluminium alloy 380 |
| Pressure actuator |
Piston |
| Operating position |
Any position |
| Materials in contact with f |
440 stainless steelViton fluorocarbon |
| Operating rate |
120 cyc/mn |
| Vibration resistance |
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance |
50 gn conforming to IEC 58-2-27 |
| Standards |
CSA C22.2 No 14CEUL 508 |
| Product certifications |
UL listed MarineCSA LR25490 class 3211 03UL listed |
| NEMA degree of protection |
NEMA 4/4X/13 conforming to UL 50 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
61.29 CENTIMETER |
| Package 1 width |
24.13 CENTIMETER |
| Package 1 length |
155.677 CENTIMETER |
| Package 1 weight |
1.134 KILOGRAM |
