9012GTG1
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

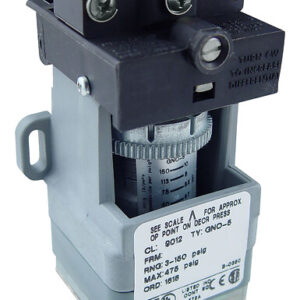

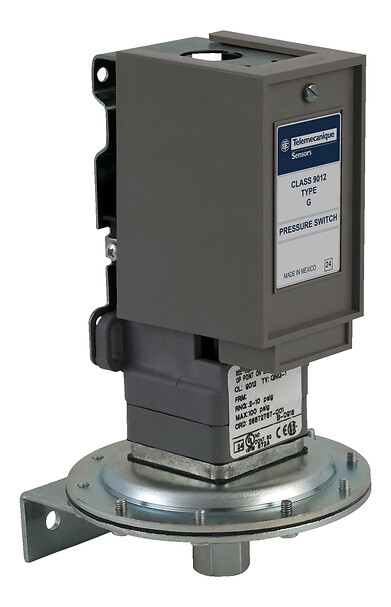

Pressure switch 9012G, fixed scale, 1 threshold, 20 to 1000 PSIG
جزئیات محصول
| وزن | 907.185 گرم |
|---|---|
| ابعاد | 57.355 × 8.89 × 22.581 سانتیمتر |
| Range of product |
9012G |
| Pressure sensor type |
Electromechanical pressure switch |
| Pressure sensor name |
9012G |
| Maximum pressure |
10000 psi |
| Contacts type and compositi |
Form C ,NC-NO ,silver nickel contacts ,snap action ,SPDT |
| Controlled fluid |
air (-15-250 °F) ,Hydraulic oil (-15-250 °F) ,non-corrosive gas (-15-250 °F) ,non-corrosive liquids (-15-250 °F) |
| Fluid connection type |
0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of ope |
Detection of 1 single threshold |
| Scale type |
Fixed differential |
| Local display |
Without |
| Cable entry |
0.5 inch NPT conduit entrance |
| Terminal block type |
4 screw terminals |
| Electrical connection |
AWG 22…AWG 12 ,Screw-clamp terminals |
| Electrical circuit type |
Control circuit |
| Local signalling |
Without: |
| Setting |
Internal |
| Enclosure material |
Thermoplastic |
| Pressure actuator |
Piston |
| Operating position |
Any position |
| Materials in contact with f |
Teflonzinc plated steel |
| Operating rate |
120 cyc/mn |
| Vibration resistance |
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance |
50 gn conforming to IEC 58-2-27 |
| Standards |
CSA C22.2 No 14CEUL 508 |
| Product certifications |
CSA LR25490 class 3211 03UL listed |
| NEMA degree of protection |
NEMA 1 conforming to UL 50 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
22.581 CENTIMETER |
| Package 1 width |
8.89 CENTIMETER |
| Package 1 length |
57.355 CENTIMETER |
| Package 1 weight |
907.185 GRAM |
