قیمت محصول
توضیحات

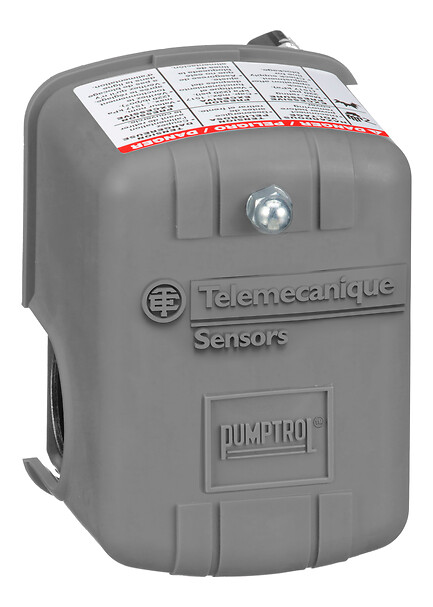

Pumptrol, air compressor switch 9013FH, fixed differential, Off at 150 PSI, high hp
جزئیات محصول
| وزن | 394.625 گرم |
|---|---|
| ابعاد | 65.548 × 10.16 × 25.806 سانتیمتر |
| Range of product |
Pumptrol |
| Pressure sensor name |
9013FH |
| Value of setting |
Off at 150 psi |
| Electrical circuit type |
Power circuit |
| Product specific applicatio |
Control small electrically driven air compressors |
| Quantity per set |
1 |
| Type of packing |
Individual |
| Pressure sensor type |
Electromechanical pressure switch |
| Controlled fluid |
Air (32-158 °F) |
| Pressure actuator |
Diaphragm |
| Pressure switch type of ope |
Regulation between 2 thresholds |
| Scale type |
Fixed differential |
| Setting |
Internal |
| Local display |
Without |
| Contacts type and compositi |
2 NC ,DPST-DB ,Form YY ,snap action |
| Electrical connection |
clamping capacity: 10 AWG ,clamping capacity: 5.261 mm² ,Screw-clamp terminals |
| Fluid connection type |
0.25 inch NPSF internal conforming to UL 508 |
| Materials in contact with f |
nitrile (Buna-N) or equivalent rubber diaphragm ,Zinc plated steel or equivalent flange |
| Material |
noryl thermoplastic resin or equivalent: cover ,Polypropylene: cover |
| Operating position |
Any position |
| Terminal block type |
4 terminals |
| Operating rate |
10 CYCLE_PER_MINUTE |
| Repeat accuracy |
+/- 3 % |
| Terminals description ISO n |
L2-T2L1-T1 |
| Factory modification |
2-way pressure release valve |
| Standards |
CEUL 508 |
| Protective treatment |
None |
| NEMA degree of protection |
NEMA 1 conforming to UL 50 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Product certifications |
CSAUL listed |
| Unit type of package 1 |
PCE |
| Package 1 height |
25.806 CENTIMETER |
| Package 1 width |
10.16 CENTIMETER |
| Package 1 length |
65.548 CENTIMETER |
| Package 1 weight |
394.625 GRAM |
| Unit type of package 2 |
CAR |
| Number of units in package |
50 |
| Package 2 height |
22.098 CENTIMETER |
| Package 2 width |
38.608 CENTIMETER |
| Package 2 length |
52.832 CENTIMETER |
| Package 2 weight |
20.598 KILOGRAM |
