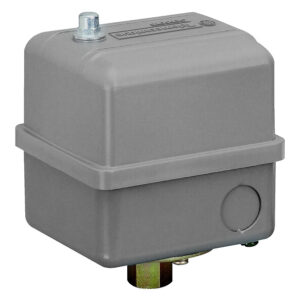

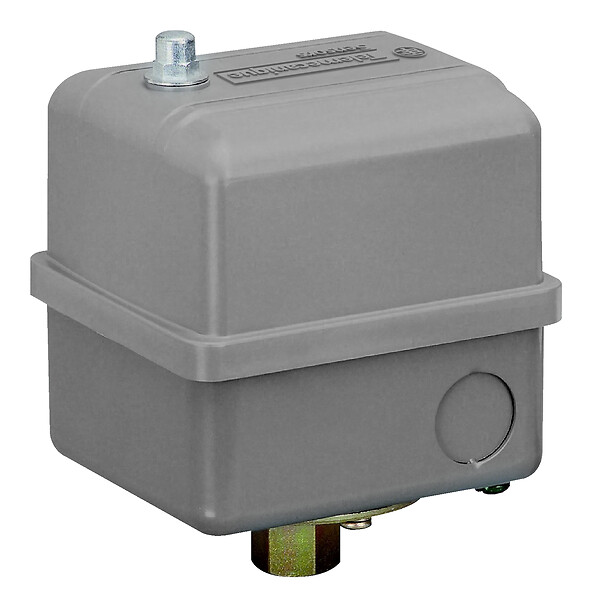

Pumptrol, pump or compressor switch 9013GH, adjustable diff., 70 90 PSI
جزئیات محصول
| وزن | 893.6 گرم |
|---|---|
| ابعاد | 15 × 9.9 × 10.9 سانتیمتر |
| Range of product |
Pumptrol |
| Pressure sensor name |
9013GH |
| Value of setting |
70…90 psi |
| Electrical circuit type |
Power circuit |
| Product specific applicatio |
Control electrically driven water pumps and air compressors |
| Quantity per set |
1 |
| Type of packing |
Individual |
| Factory modification |
Not applicable |
| Pressure sensor type |
Electromechanical pressure switch |
| Controlled fluid |
Air (32-158 °F) ,Fresh water (32-158 °F) |
| Pressure switch type of ope |
Regulation between 2 thresholds |
| Pressure actuator |
Diaphragm |
| Setting |
Internal |
| Scale type |
Adjustable differential |
| Local display |
Without |
| Contacts type and compositi |
2 NC ,DPST-DB ,Form YY ,snap action |
| Electrical connection |
clamping capacity: 10 AWG ,clamping capacity: 5.261 mm² ,Screw-clamp terminals |
| Materials in contact with f |
nitrile (Buna-N) or equivalent rubber diaphragm ,Zinc plated steel or equivalent flange |
| Fluid connection type |
0.25 inch NPSF internal conforming to UL 508 |
| Material |
noryl thermoplastic resin or equivalent: cover ,Polypropylene: cover |
| Operating position |
Any position |
| Terminal block type |
4 terminals |
| Operating rate |
10 CYCLE_PER_MINUTE |
| Repeat accuracy |
+/- 3 % |
| Terminals description ISO n |
L2-T2L1-T1 |
| Standards |
CEUL 508NSF ANSI 372 |
| Product certifications |
CSAUL listed |
| Protective treatment |
None |
| NEMA degree of protection |
NEMA 1 conforming to UL 50 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
10.9 CENTIMETER |
| Package 1 width |
9.9 CENTIMETER |
| Package 1 length |
15 CENTIMETER |
| Package 1 weight |
893.6 GRAM |
