9016GAW21
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

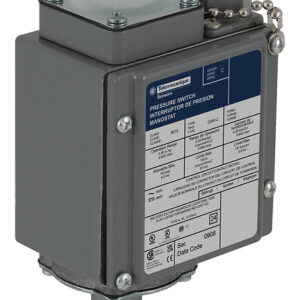

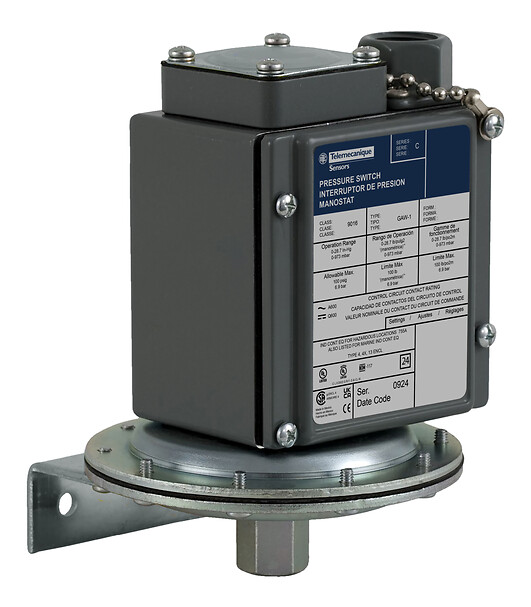

Electromechanical vacuum switch, 9016G, adjustable scale, 2 thresholds, Set 0 to 28.3 InHg
جزئیات محصول
| وزن | 1960 گرم |
|---|---|
| ابعاد | 19.8 × 18.5 × 15 سانتیمتر |
| Range of product |
9016G |
| Product or component type |
Electromechanical vacuum switch |
| Device application |
Sensitive control application |
| Device short name |
9016G |
| Electrical circuit type |
Control circuit |
| Factory modification |
Not applicable |
| Vacuum switch type of opera |
Regulation between two thresholds |
| Scale type |
Adjustable differential |
| Value of setting |
Not applicable |
| Maximum pressure |
100 psi |
| Local display |
Without |
| Fluid connection type |
0.25 inch 18 NPTF conforming to UL 508 |
| Electrical connection |
Screw-clamp terminals AWG 22…AWG 12 |
| Cable entry |
0.5 inch NPT conduit entrance |
| Terminal block type |
8 screw terminals |
| Pressure actuator |
Diaphragm nitrile (Buna-N) |
| Controlled fluid |
air (-40-250 °F) ,gas (-40-250 °F) ,Hydraulic oil (-40-250 °F) ,water (-40-250 °F) |
| Materials in contact with f |
Zinc plated steelnitrile (Buna-N)3M Scotch-Grip 847 rubber and gasket adhesive |
| Enclosure material |
Die cast aluminium alloy 380 |
| Operating position |
Any position |
| Operating rate |
120 cyc/mn |
| Local signalling |
Without: |
| Contacts type and compositi |
2(NC-NO) ,DPDT ,Form ZZ ,silver nickel contacts ,snap action |
| Setting |
Internal |
| Standards |
UL 508 |
| Product certifications |
CSAUL listed |
| Protective treatment |
None |
| Vibration resistance |
2 gn conforming to IEC 68-2-6 (f = 40-150 Hz) |
| Shock resistance |
50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection |
NEMA 4/4X/13 conforming to UL 698 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
15 CENTIMETER |
| Package 1 width |
18.5 CENTIMETER |
| Package 1 length |
19.8 CENTIMETER |
| Package 1 weight |
1.96 KILOGRAM |
