وزن	2087 گرم
ابعاد	120.937 × 18.745 × 47.613 سانتیمتر
Range of product	9016G
Product or component type	Electromechanical vacuum switch
Device application	Sensitive control application
Device short name	9016G
Electrical circuit type	Control circuit
Factory modification	Not applicable
Vacuum switch type of opera	Regulation between two thresholds
Scale type	Adjustable differential
Value of setting	Not applicable
Maximum pressure	100 psi
Local display	Without
Fluid connection type	0.25 inch 18 NPTF conforming to UL 508
Electrical connection	Screw-clamp terminals AWG 22…AWG 12
Cable entry	0.5 inch NPT conduit entrance
Terminal block type	8 screw terminals
Pressure actuator	Diaphragm nitrile (Buna-N)
Controlled fluid	air (-40-250 °F), gas (-40-250 °F), Hydraulic oil (-40-250 °F), water (-40-250 °F)
Materials in contact with f	Zinc plated steelnitrile (Buna-N)3M Scotch-Grip 847 rubber and gasket adhesive
Enclosure material	Die cast aluminium alloy 380
Operating position	Any position
Operating rate	120 cyc/mn
Local signalling	Without:
Contacts type and compositi	2(NC-NO), DPDT, Form ZZ, silver nickel contacts, snap action
Setting	Internal
Standards	UL 508
Product certifications	CSAUL listed
Vibration resistance	2 gn conforming to IEC 68-2-6 (f = 40-150 Hz)
Shock resistance	50 gn conforming to IEC 58-2-27
NEMA degree of protection	NEMA 4/4X/13 conforming to UL 698
Unit type of package 1	PCE
Number of units in package	1
Package 1 height	47.613 CENTIMETER
Package 1 width	18.745 CENTIMETER

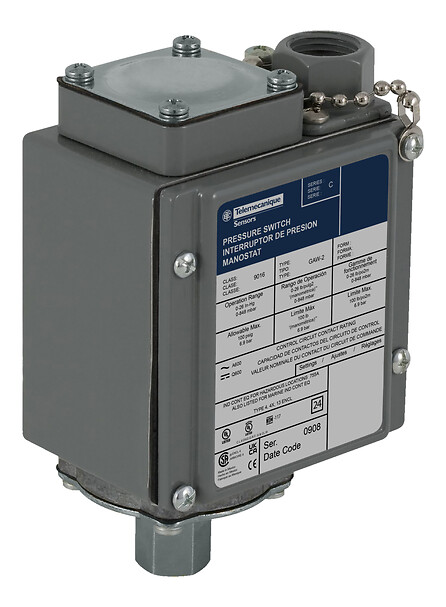

9016GAW22
