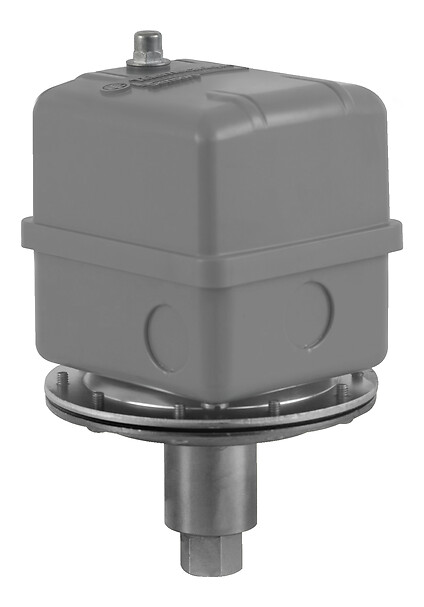

9016GVG1J13
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

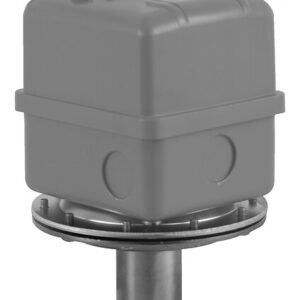

Electromechanical vacuum switch, 9016GVG, adjustable scale, 2 thresholds, Set 20 to 25 InHg
جزئیات محصول
| وزن | 1597 گرم |
|---|---|
| ابعاد | 20.066 × 12.192 × 13.208 سانتیمتر |
| Range of product |
9016GVG |
| Product or component type |
Electromechanical vacuum switch |
| Device application |
Power circuit application |
| Device short name |
9016GVG |
| Electrical circuit type |
Power circuit |
| Factory modification |
Not applicable |
| Vacuum switch type of opera |
Regulation between two thresholds |
| Scale type |
Adjustable |
| Value of setting |
20…25 inHg |
| Maximum pressure |
100 psi |
| Local display |
Without |
| Fluid connection type |
0.25 inch 18 NPSF conforming to UL 508 |
| Electrical connection |
Screw-clamp terminals AWG 22…AWG 12 |
| Terminal block type |
8 screw terminals |
| Pressure actuator |
Diaphragm nitrile (Buna-N) |
| Controlled fluid |
air (-40-250 °F) ,gas (-40-250 °F) ,Hydraulic oil (-40-250 °F) ,water (-40-250 °F) |
| Materials in contact with f |
Zinc plated steelnitrile (Buna-N)3M Scotch-Grip 847 rubber and gasket adhesive |
| Cover material |
noryl thermoplastic resin or equivalent ,Polypropylene |
| Operating position |
Any position |
| Enclosure material |
Stamped metal |
| Operating rate |
100 cyc/mn |
| Repeat accuracy |
0.025 |
| Contacts type and compositi |
2 NC ,DPST-DB ,Form YY ,silver cadmium contacts ,snap action |
| Setting |
Internal |
| Standards |
UL 508 |
| Product certifications |
CSAUL listed |
| Protective treatment |
None |
| NEMA degree of protection |
NEMA 1 conforming to UL 698 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
13.208 CENTIMETER |
| Package 1 width |
12.192 CENTIMETER |
| Package 1 length |
20.066 CENTIMETER |
| Package 1 weight |
1.597 KILOGRAM |
نقد و بررسیها
پاکسازی فیلترهنوز بررسیای ثبت نشده است.
