ACW7M129012
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

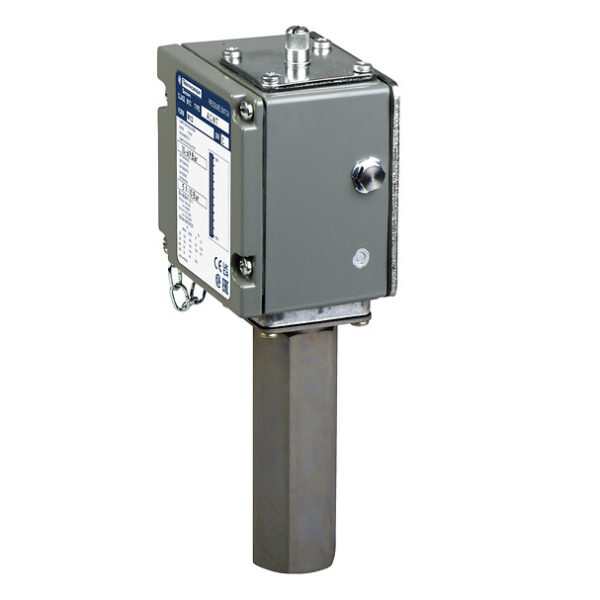

Pressure sensors XM, pressure switch ACW 69 bar, adjustable scale 2 thresholds, 1CO
جزئیات محصول
| وزن | 2196 گرم |
|---|---|
| ابعاد | 25.5 × 12 × 7 سانتیمتر |
| Range of product |
Telemecanique Pressure sensors XM |
| Pressure sensor name |
ACW |
| Pressure sensor type |
Electromechanical pressure sensor |
| Product specific applicatio |
For regulation between 2 thresholds |
| Scale type |
Adjustable differential |
| Contacts type and compositi |
1 C/O snap action |
| Cable entry |
1 entry tapped for Pg 13.5 cable gland ,cable outer diameter: 9-13 mm conforming to NF C 68-300 |
| Fluid connection type |
G 1/4 (female) conforming to ISO 228 |
| Materials in contact with f |
Phosphor bronze |
| Pressure actuator |
Bellows |
| Electrical circuit type |
Control circuit |
| Electrical connection |
clamping capacity: 1 x 1…2 x 2.5 mm² ,Screw-clamp terminals |
| Controlled fluid |
Air (-73-125 °C) ,hydraulic oil (-73-125 °C) ,non-corrosive fluid (-73-125 °C) |
| Enclosure material |
Zinc alloy |
| Setting |
External |
| Local display |
Without |
| Terminals description ISO n |
(3-4)NO(1-2)NC |
| Protective treatment |
TC |
| Standards |
CEIEC 60947-5-1 |
| Product certifications |
CSAUL recognized |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
7 CENTIMETER |
| Package 1 width |
12 CENTIMETER |
| Package 1 length |
25.5 CENTIMETER |
| Package 1 weight |
2.196 KILOGRAM |
