SM380A34400FP
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

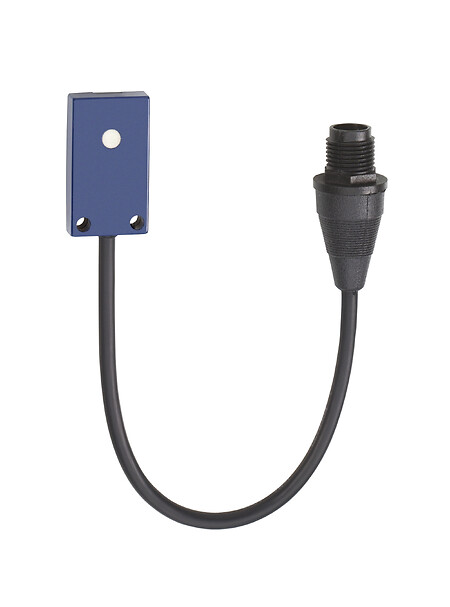

Hyde Park, Ultrasonic sensor, discrete, miniature flat profile, 12 24 V DC
جزئیات محصول
| وزن | 117.934 گرم |
|---|---|
| ابعاد | 8.415 × 3.81 × 8.415 سانتیمتر |
| Range of product |
Hyde Park |
| Sensor type |
Ultrasonic sensor |
| Series name |
Superprox 300 |
| Sensor design |
Flat form miniature |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Type of sensing window |
Fixed |
| Discrete output function |
1 NO |
| Wiring technique |
4-wire |
| [Us] rated supply voltage |
12…24 V DC with overload and short-circuit protection |
| Discrete output type |
PNP/NPN |
| Electrical connection |
152 mm cable length ,Remote male connector M12 4 pins |
| Product specific applicatio |
Discrete proximity |
| Enclosure material |
ULTEM |
| Front material |
Glass epoxy |
| Minimum size of detected ob |
Cylinder diameter 2.5 mm – up to 1 mm sensing distance |
| Current consumption |
25 mA |
| IP degree of protection |
IP67 |
| Marking |
CE |
| Product certifications |
UL |
| NEMA degree of protection |
NEMA 4X (indoor use only) |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.415 CENTIMETER |
| Package 1 width |
3.81 CENTIMETER |
| Package 1 length |
8.415 CENTIMETER |
| Package 1 weight |
117.934 GRAM |
