SM656A67400S
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

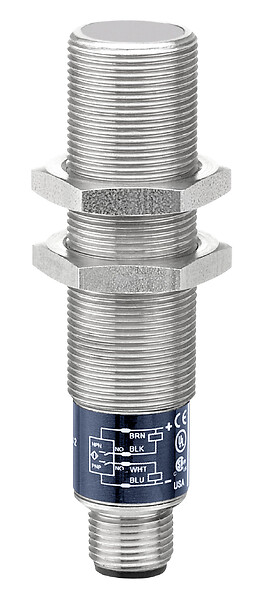

Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm barrel, 15 24 V DC
جزئیات محصول
| وزن | 58.967 گرم |
|---|---|
| ابعاد | 8.415 × 3.81 × 8.415 سانتیمتر |
| Range of product |
Hyde Park |
| Sensor type |
Ultrasonic sensor |
| Series name |
Superprox 600 |
| Sensor design |
Cylindrical M18 |
| Material |
Stainless steel |
| Type of output signal |
Analog |
| Type of sensing window |
Fixed |
| Wiring technique |
4-wire |
| [Us] rated supply voltage |
15…24 V DC with overload and short-circuit protection |
| ISO thread |
M18 x 1 |
| Electrical connection |
Male connector M12 4 pins |
| Product specific applicatio |
Analog output |
| Enclosure material |
Stainless steel 303 |
| Front material |
Silicone rubber |
| Minimum size of detected ob |
Cylinder diameter 1.59 mm – up to 63.5 mm sensing distance |
| Current consumption |
<= 50 mA |
| IP degree of protection |
IP67 |
| Marking |
CE |
| Product certifications |
UL |
| NEMA degree of protection |
NEMA 4X (indoor use only) |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.415 CENTIMETER |
| Package 1 width |
3.81 CENTIMETER |
| Package 1 length |
8.415 CENTIMETER |
| Package 1 weight |
58.967 GRAM |
