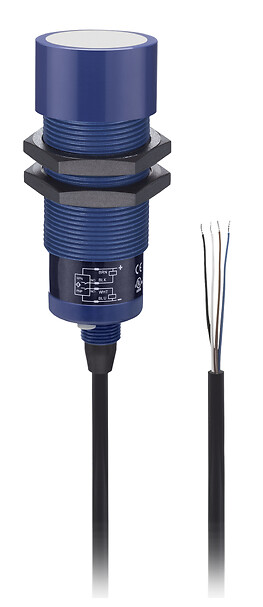

Hyde Park, Ultrasonic sensor, dual level, alarm, 30 mm barrel, 12 24 V DC
جزئیات محصول
| وزن | 240.404 گرم |
|---|---|
| ابعاد | 14.288 × 6.35 × 14.288 سانتیمتر |
| Range of product |
Hyde Park |
| Sensor type |
Ultrasonic sensor |
| Series name |
Superprox 900 |
| Sensor design |
Cylindrical M30 |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Type of sensing window |
Adjustable |
| Discrete output function |
1 NO |
| Wiring technique |
4-wire |
| [Us] rated supply voltage |
12…24 V DC with overload and short-circuit protection |
| Discrete output type |
PNP |
| ISO thread |
M30 x 1.5 |
| Electrical connection |
3 m cable length ,Cable |
| Product specific applicatio |
Dual-level – alarm |
| Enclosure material |
ULTEM |
| Front material |
Silicone rubber |
| Minimum size of detected ob |
Cylinder diameter 1.6 mm – up to 305 mm sensing distance |
| Current consumption |
100 mA |
| IP degree of protection |
IP67 |
| Marking |
CE |
| Product certifications |
UL |
| NEMA degree of protection |
NEMA 4X (indoor use only) |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
14.288 CENTIMETER |
| Package 1 width |
6.35 CENTIMETER |
| Package 1 length |
14.288 CENTIMETER |
| Package 1 weight |
240.404 GRAM |
