XC2JC161
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

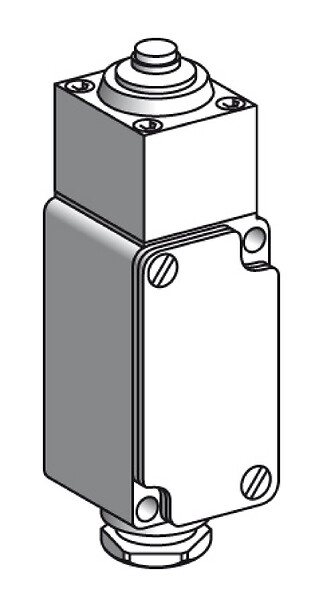

Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O
جزئیات محصول
| وزن | 580 گرم |
|---|---|
| ابعاد | 14.5 × 7.2 × 4.7 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Special format |
| Product or component type |
Limit switch |
| Product specific applicatio |
For severe applications |
| Device short name |
XC2J |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Metal |
| Movement of operating head |
Linear |
| Type of operator |
End plunger metal |
| Switch actuation |
On end |
| Type of approach |
1 direction ,Vertical approach |
| Contact operation |
Snap action |
| Repeat accuracy |
0.01 mm with 1 million operating cycles |
| Fixing mode |
By the body |
| Electrical connection |
clamping capacity: 1 x 0.5…2 x 2.5 mm² ,Screw-clamp terminals |
| Cable entry |
1 entry incorporating cable gland ,cable outer diameter: 6-13.5 mm |
| Contacts insulation form |
Za |
| Positive opening |
Without |
| Contacts material |
Silver plated contacts |
| Contact code designation |
– |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 ,25 MOhm conforming to NF C 93-050 method A |
| Terminals description ISO n |
(13-14-11-12)OF |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP657 conforming to IEC 60529 |
| IK degree of protection |
IK08 |
| Electrical shock protection |
Class I conforming to IEC 60536 ,class I conforming to NF C 20-030 |
| Product certifications |
CSANEMKODEMKO |
| Protective treatment |
TC |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1VDE 0660-200IEC 60337-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.7 CENTIMETER |
| Package 1 width |
7.2 CENTIMETER |
| Package 1 length |
14.5 CENTIMETER |
| Unit type of package 2 |
S01 |
| Package 1 weight |
580 GRAM |
| Number of units in package |
7 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.26 KILOGRAM |
