XCE118C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

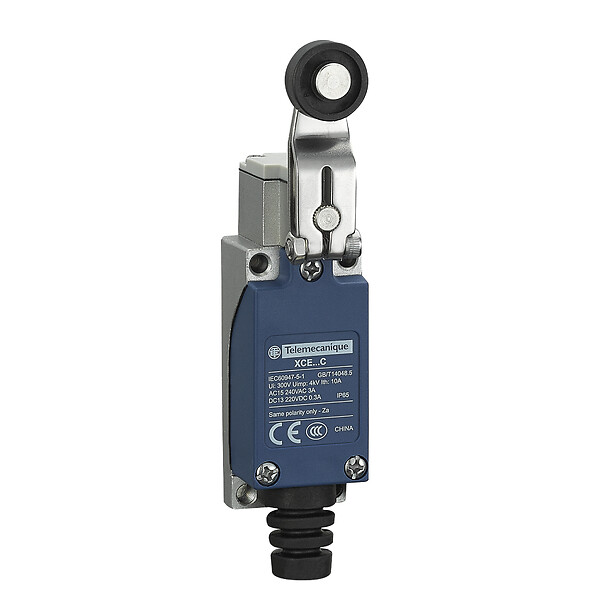

Thermoplastic roller lever
جزئیات محصول
| وزن | 173 گرم |
|---|---|
| ابعاد | 13 × 5 × 3 سانتیمتر |
| Range of product | OsiSense XC |
| Series name | Basic |
| Product or component type | Limit switch |
| Product specific applicatio | Medium duty |
| Device short name | XCE |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic and metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Switch actuation | By 30° cam |
| Type of approach | 2 directions, Lateral approach |
| Electrical connection | clamping capacity: 1 x 1.5 mm², Screw-clamp terminals |
| Cable entry | 1 flexible rubber cable gland, cable outer diameter: 6-9 mm |
| Contact operation | Snap action |
| Positive opening | Without |
| Contacts insulation form | Za |
| Operating rate | 120 CYCLE_PER_MINUTE |
| Contact code designation | A300, AC (Ue = 240 V), DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1, Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300 |
| Resistance across terminals | 25 MOhm |
| Terminals description ISO n | (3-4-1-2)OF |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | +/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Electrical shock protection | Class I conforming to IEC 60947-5-1 |
| Marking | CCCCE |
| Standards | IEC 60947-5-1GB 14048.5 |
| Unit type of package 1 | PCE |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 length | 13 CENTIMETER |
| Package 1 weight | 173 GRAM |
| Unit type of package 2 | S02 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 8.891 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package | 800 |
| Package 3 height | 75 CENTIMETER |
| Package 3 width | 80 CENTIMETER |
| Package 3 length | 60 CENTIMETER |
| Package 3 weight | 150.256 KILOGRAM |
