وزن	185.5 گرم
ابعاد	13.1 × 4.8 × 3 سانتیمتر
Range of product	OsiSense XC
Series name	Basic

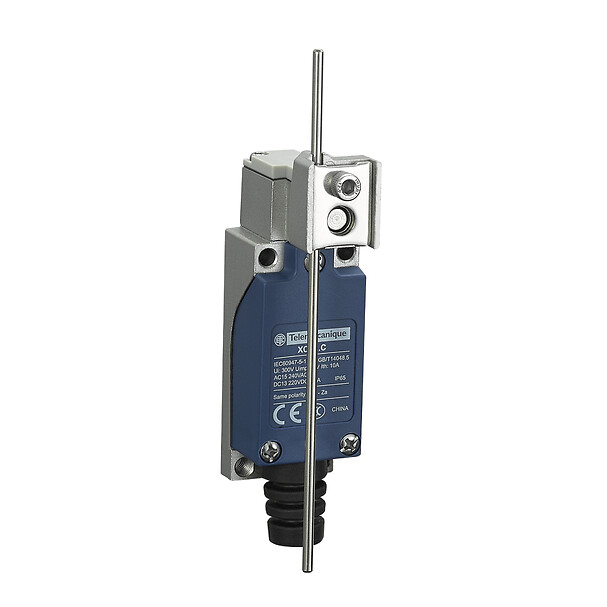

Product or component type	Limit switch
Product specific applicatio	Medium duty
Device short name	XCE
Body type	Fixed
Head type	Rotary head
Material	Plastic and metal
Fixing mode	By the body
Movement of operating head	Rotary
Type of operator	Spring return round rod lever steel round rod 3 mm
Switch actuation	By any moving part
Type of approach	2 directions, Lateral approach
Electrical connection	clamping capacity: 1 x 1.5 mm², Screw-clamp terminals
Cable entry	1 flexible rubber cable gland, cable outer diameter: 6-9 mm
Contact operation	Snap action
Positive opening	Without
Contacts insulation form	Za
Operating rate	120 CYCLE_PER_MINUTE
Contact code designation	A300, AC (Ue = 240 V), DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1, Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300
Resistance across terminals	25 MOhm
Terminals description ISO n	(3-4-1-2)OF
Shock resistance	30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance	+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP65 conforming to IEC 60529
Electrical shock protection	Class I conforming to IEC 60947-5-1
Marking	CCCCE
Standards	IEC 60947-5-1GB 14048.5
Unit type of package 1	PCE
Package 1 height	3 CENTIMETER
Package 1 width	4.8 CENTIMETER
Package 1 length	13.1 CENTIMETER
Package 1 weight	185.5 GRAM
Unit type of package 2	S03
Package 2 height	30 CENTIMETER
Package 2 width	30 CENTIMETER
Package 2 length	40 CENTIMETER
Package 2 weight	12.1276 KILOGRAM
Unit type of package 3	P06
Number of units in package	800
Package 3 height	60 CENTIMETER
Package 3 width	80 CENTIMETER
Package 3 length	60 CENTIMETER
Package 3 weight	87.7656 KILOGRAM

XCE154CTQ
