XCE181C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

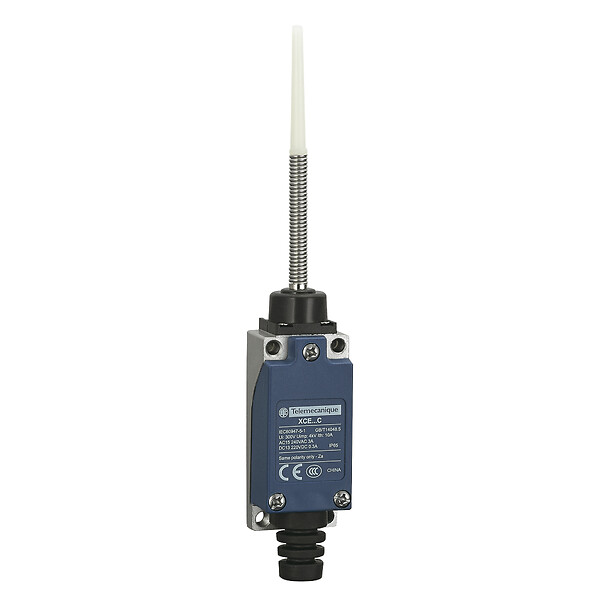

Spring rod with thermoplastic end
جزئیات محصول
| وزن | 133 گرم |
|---|---|
| ابعاد | 17.5 × 5 × 3 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Basic |
| Product or component type |
Limit switch |
| Product specific applicatio |
Medium duty |
| Device short name |
XCE |
| Body type |
Fixed |
| Head type |
Multi-directional head |
| Material |
Plastic and metal |
| Fixing mode |
By the body |
| Movement of operating head |
Multi-directional |
| Type of operator |
Cat's whisker plastic and metal |
| Switch actuation |
By any moving part |
| Type of approach |
Multi-directional approach |
| Electrical connection |
clamping capacity: 1 x 1.5 mm² ,Screw-clamp terminals |
| Cable entry |
1 flexible rubber cable gland ,cable outer diameter: 6-9 mm |
| Contact operation |
Snap action |
| Positive opening |
Without |
| Contacts insulation form |
Za |
| Operating rate |
120 CYCLE_PER_MINUTE |
| Contact code designation |
A300 ,AC (Ue = 240 V) ,DC (Ue = 220 V) ,Ie = 0.3 A conforming to IEC 60947-5-1 ,Ie = 3 A ,Ithe = 10 A conforming to IEC 60947-5-1 ,R300 |
| Resistance across terminals |
25 MOhm |
| Terminals description ISO n |
(3-4-1-2)OF |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Electrical shock protection |
Class I conforming to IEC 60947-5-1 |
| Marking |
CCCCE |
| Standards |
IEC 60947-5-1GB 14048.5 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3 CENTIMETER |
| Package 1 width |
5 CENTIMETER |
| Package 1 length |
17.5 CENTIMETER |
| Package 1 weight |
133 GRAM |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
5.569 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
640 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
80 CENTIMETER |
| Package 3 length |
60 CENTIMETER |
| Package 3 weight |
97.104 KILOGRAM |
