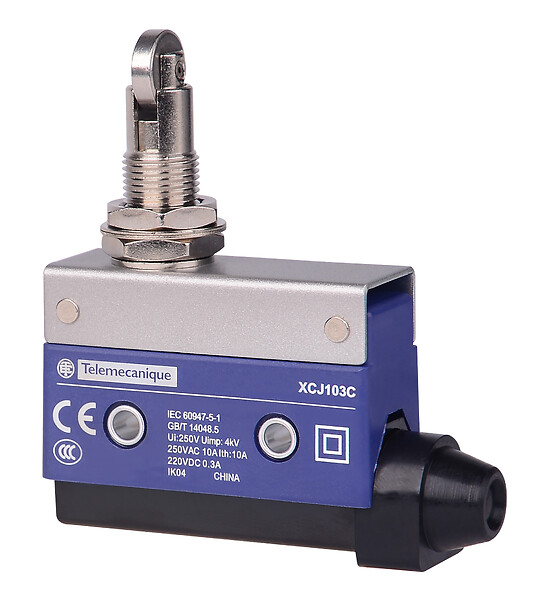

XCJ103C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Steel roller plunger, vertical actuation
جزئیات محصول
| وزن | 94 گرم |
|---|---|
| ابعاد | 7.5 × 7 × 2 سانتیمتر |
| Range of product | OsiSense XC |
| Series name | Basic |
| Product or component type | Limit switch |
| Product specific applicatio | Light to medium duty |
| Device short name | XCJ |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic and metal |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger stainless steel |
| Switch actuation | On end |
| Type of approach | 1 direction, Traverse approach |
| Electrical connection | Screw-clamp terminals |
| Cable entry | 1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm |
| Contact operation | Snap action |
| Positive opening | Without |
| Contacts insulation form | C |
| Operating rate | 120 CYCLE_PER_MINUTE |
| Contact code designation | A300, AC (Ue = 240 V), DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1, Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300 |
| Resistance across terminals | 25 MOhm |
| Terminals description ISO n | (NO-NC-C)OF |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | +/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Electrical shock protection | Class II conforming to IEC 60947-5-1 |
| Marking | CCCCE |
| Standards | IEC 60947-5-1GB 14048.5 |
| Unit type of package 1 | PCE |
| Package 1 height | 2 CENTIMETER |
| Package 1 width | 7 CENTIMETER |
| Package 1 length | 7.5 CENTIMETER |
| Package 1 weight | 94 GRAM |
| Unit type of package 2 | BB1 |
| Package 2 height | 8 CENTIMETER |
| Package 2 width | 8.5 CENTIMETER |
| Package 2 length | 22 CENTIMETER |
| Package 2 weight | 994 GRAM |
| Unit type of package 3 | S03 |
| Number of units in package | 150 |
| Package 3 height | 30 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 15.329 KILOGRAM |
