XCKD2121M12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

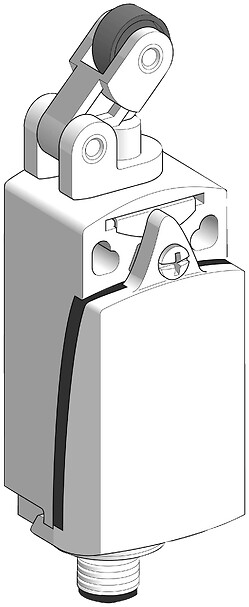

Limit switch, Limit switches XC Standard, XCKD, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, M12
جزئیات محصول
| وزن | 184 گرم |
|---|---|
| ابعاد | 13 × 4.9 × 3.5 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKD |
| Sensor design |
Compact form E conforming to CENELEC EN 50047 |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return roller lever plunger thermoplastic |
| Type of approach |
1 direction ,Lateral approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
By 30° cam |
| Electrical connection |
5 pins ,Male connector M12 |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Repeat accuracy |
0.1 mm on the tripping points with 1 million operating cycles |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection |
IK06 conforming to IEC 62262 |
| Electrical shock protection |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.5 CENTIMETER |
| Package 1 weight |
184 GRAM |
| Package 1 width |
4.9 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Unit type of package 2 |
S01 |
| Number of units in package |
21 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.102 KILOGRAM |
