XCKJ10514D
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

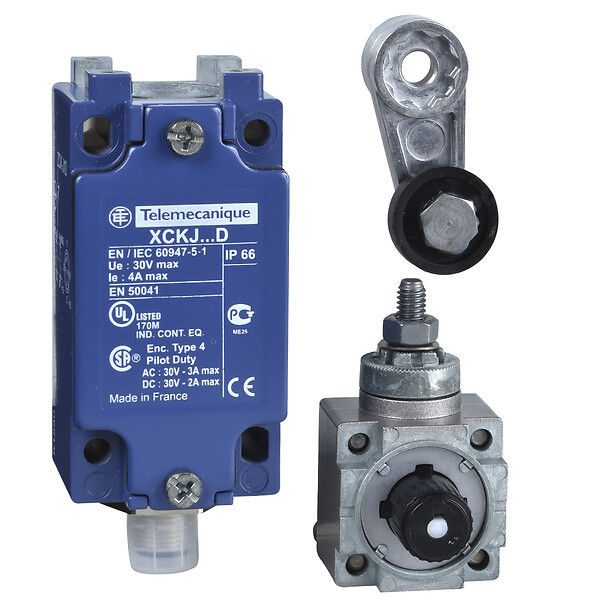

Limit switch, XC Standard, XCKJ, steel roller lever ball bearing, 1NC+1 NO, snap, M12
جزئیات محصول
| وزن | 490 گرم |
|---|---|
| ابعاد | 4.1 × 6.8 × 12.6 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKJ |
| Sensor design |
Form A conforming to CENELEC EN 50041 |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Spring return roller lever metal ball bearing mounted |
| Type of approach |
1 or 2 programmable direction ,Lateral approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
By 30° cam |
| Contacts insulation form |
Zb |
| Electrical connection |
5 pins ,Male connector M12 |
| Positive opening |
With |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK07 conforming to IEC 62262 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TH |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
12.6 CENTIMETER |
| Package 1 width |
6.8 CENTIMETER |
| Package 1 length |
4.1 CENTIMETER |
| Package 1 weight |
490 GRAM |
نقد و بررسیها
پاکسازی فیلترهنوز بررسیای ثبت نشده است.
