XCKJ10559H7
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

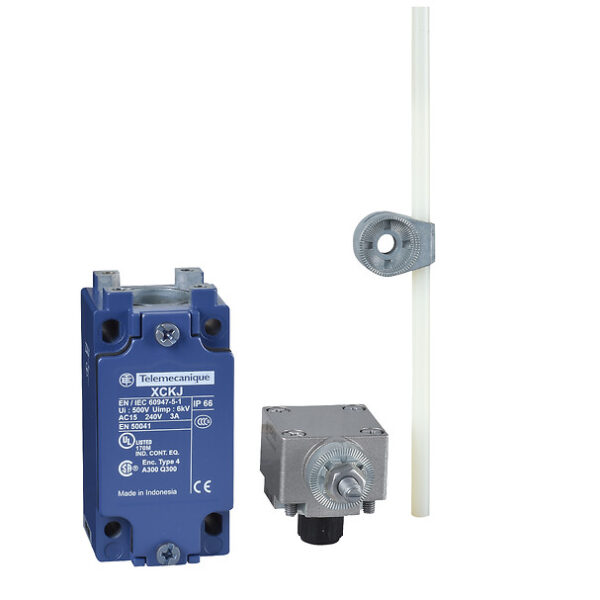

Limit switch, XC Standard, XCKJ, thermoplastic round rod lever 6 mm, 1NC+1 NO, snap, 1/2NPT
جزئیات محصول
| وزن | 483 گرم |
|---|---|
| ابعاد | 21 × 5.8 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKJ |
| Sensor design |
Form D conforming to CENELEC EN 50041 |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
L = 200 mm ,Spring return round rod lever thermoplastic round rod 6 mm |
| Type of approach |
1 or 2 programmable direction ,Lateral approach |
| Cable entry |
1 entry tapped for 1/2" NPT cable gland |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
By any moving part |
| Contacts insulation form |
Zb |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Positive opening |
Without |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK07 conforming to IEC 62262 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TH |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
5.8 CENTIMETER |
| Package 1 length |
21 CENTIMETER |
| Package 1 weight |
483 GRAM |
