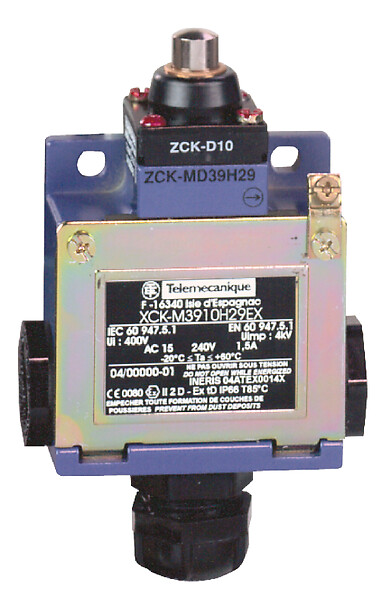

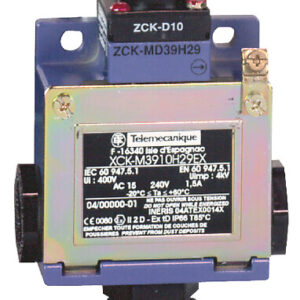

XCKM3906H29EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Limit switch, Limit switches XC Standard, XCKM, cat’s whisker, 2NC + NO, ATEX/IECEx
جزئیات محصول
| وزن | 328 گرم |
|---|---|
| ابعاد | 23.3 × 9.3 × 9.5 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKM |
| Body type |
Fixed |
| Head type |
Multi-directional head |
| Material |
Metal |
| Fixing mode |
By the body |
| Movement of operating head |
Multi-directional |
| Type of operator |
Spring return cat''s whisker |
| Switch actuation |
By any moving part |
| Type of approach |
Multi-directional approach |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 0.75 mm² ,Screw-clamp terminals |
| Contacts type and compositi |
2 NC + 1 NO |
| Contacts insulation form |
Zb |
| Contact operation |
Snap action |
| Positive opening |
Without |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Body material |
Zamak |
| Contact code designation |
AC-15 (Ue = 240 V) ,B300 ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A conforming to IEC 60947-5-1 ,Ie = 1.5 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Marking |
II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Dust zone |
Zone 21 – 22 |
| Product certifications |
INERIS 04ATEX0014XIEC-Ex INE 17.0020X |
| Standards |
IEC 60079-31IEC 60079-0 |
| Directives |
2014/34/EU – ATEX directive |
| Unit type of package 1 |
PCE |
| Package 1 height |
9.5 CENTIMETER |
| Package 1 width |
9.3 CENTIMETER |
| Package 1 length |
23.3 CENTIMETER |
| Package 1 weight |
328 GRAM |
| Unit type of package 2 |
S03 |
| Number of units in package |
12 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.421 KILOGRAM |
