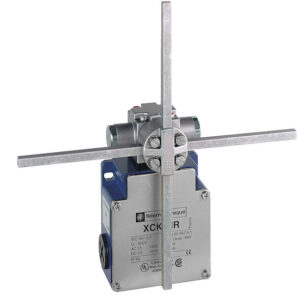

XCKMR54D1
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

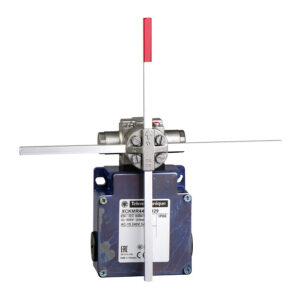

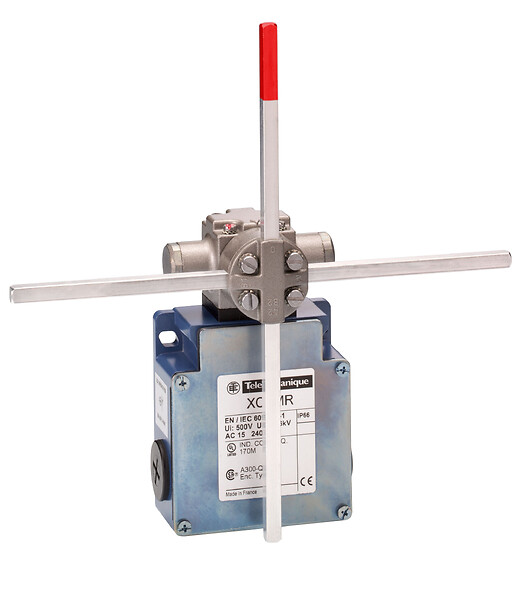

Limit switch, Limit switches XC Standard, XCKMR, stay put crossed rods lever 6 mm, 2x(2 NC), slow, Pg13
جزئیات محصول
| وزن | 725 گرم |
|---|---|
| ابعاد | 23 × 11 × 13 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Special format |
| Product or component type |
Limit switch |
| Product specific applicatio |
For hoisting and mechanical handling applications |
| Device short name |
XCKMR |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
L = 200 mm ,Stay put crossed rods lever metal square rod 6 mm |
| Type of approach |
2 directions ,Lateral approach |
| Cable entry |
3 entries tapped for Pg 13.5 cable gland ,cable outer diameter: 9-12 mm |
| Contacts type and compositi |
2 x (2 NC) |
| Contact operation |
Slow-break ,staggered |
| Switch actuation |
By any moving part |
| Electrical connection |
clamping capacity: 1 x 0.5…2 x 2.5 mm² ,Screw-clamp terminals |
| Contacts insulation form |
Zb |
| Contact block per direction |
1 per direction |
| Positive opening |
With |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 125 V) ,Ie = 0.55 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A ,Ithe = 10 A conforming to IEC 60947-5-1 appendix A ,Q150 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(11-12)NC |
| Shock resistance |
50 gn conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| IK degree of protection |
IK07 conforming to IEC 62262 |
| Electrical shock protection |
Class I conforming to IEC 60536 |
| Protective treatment |
TC |
| Product certifications |
CSACCCCEUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
13 CENTIMETER |
| Package 1 width |
11 CENTIMETER |
| Package 1 length |
23 CENTIMETER |
| Package 1 weight |
725 GRAM |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.955 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
96 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
60 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
85.38 KILOGRAM |
