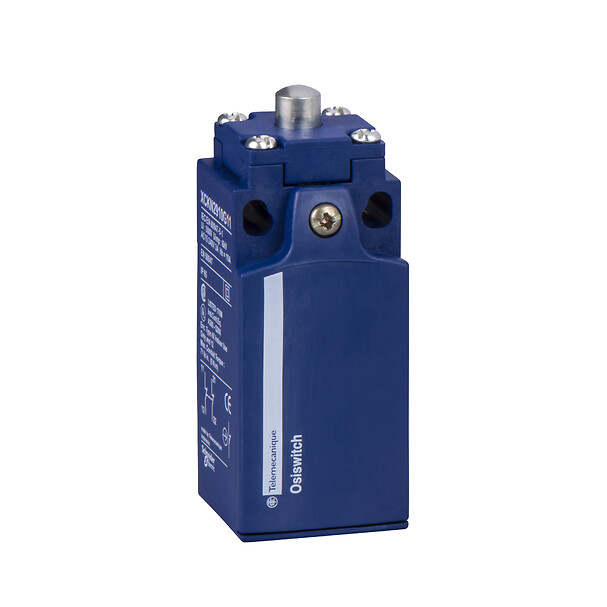

XCKN2110P20
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Limit switch, Limit switches XC Standard, XCKN, metal end plunger, 1NC+1 NO, snap, M20
جزئیات محصول
| وزن | 64 گرم |
|---|---|
| ابعاد | 17 × 12.8 × 11.12 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKN |
| Sensor design |
Compact form B |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Plastic |
| Body material |
Plastic |
| Head material |
Plastic |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger metal |
| Type of approach |
1 direction ,Vertical approach |
| Cable entry |
1 entry tapped for M20 x 1.5 cable gland ,cable outer diameter: 7-13 mm |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
On end |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A ,Ithe = 10 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Repeat accuracy |
0.1 mm on the tripping points with 1 million operating cycles |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
45 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
