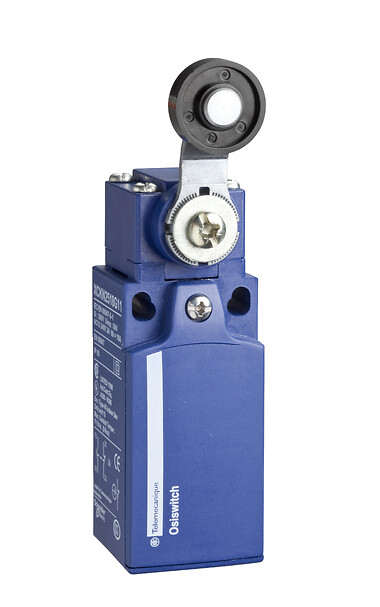

XCKN2118P20C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever, 1NC+1 NO, snap, M20
جزئیات محصول
| وزن | 91 گرم |
|---|---|
| ابعاد | 10.919 × 2.985 × 2.965 سانتیمتر |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact form A |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | 2 directions, Lateral approach |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and compositi | 1 NC + 1 NO |
| Contact operation | Snap action |
| Tracks | 24/40 mm |
| Switch actuation | By 30° cam |
| Electrical connection | clamping capacity: 1 x 0.34…2 x 1.5 mm², Screw-clamp terminals |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | A300, AC-15 (Ue = 240 V), DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300 |
| Terminals description ISO n | (21-22)NC(13-14)NO |
| Shock resistance | 45 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
