XCKN2739G110U
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

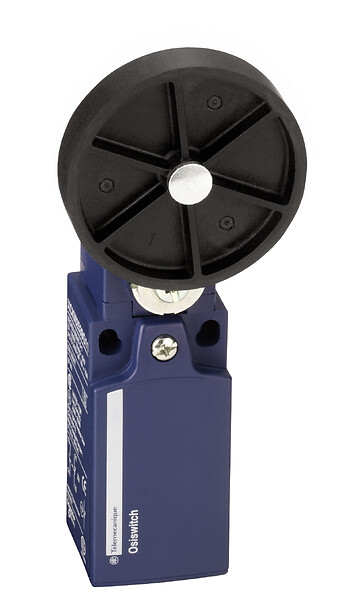

Limit switch, Limit switches XC Standard, XCKN, thermoplastic roller lever Ø 50 mm, 2NC, slow, Pg11
جزئیات محصول
| وزن | 101 گرم |
|---|---|
| ابعاد | 31 × 16 × 11 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKN |
| Sensor design |
Compact |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Plastic |
| Body material |
Plastic |
| Head material |
Plastic |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Spring return roller lever thermoplastic roller diameter 50 mm |
| Type of approach |
2 directions ,Lateral approach |
| Cable entry |
1 entry tapped for Pg 11 cable gland |
| Contacts type and compositi |
2 NC |
| Contact operation |
simultaneous ,Slow-break |
| Switch actuation |
By 30° cam |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A ,Ithe = 10 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Terminals description ISO n |
(21-22)NC(11-12)NC |
| Shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| IK degree of protection |
IK04 conforming to IEC 62262 |
| Overvoltage category |
Class II conforming to IEC 61140 ,class II conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
11 CENTIMETER |
| Package 1 width |
16 CENTIMETER |
| Package 1 length |
31 CENTIMETER |
| Package 1 weight |
101 GRAM |
| Unit type of package 2 |
BB1 |
| Package 2 height |
11.2 CENTIMETER |
| Package 2 width |
16 CENTIMETER |
| Package 2 length |
31 CENTIMETER |
| Package 2 weight |
2.04 KILOGRAM |
| Unit type of package 3 |
S03 |
| Number of units in package |
60 |
| Package 3 height |
30 CENTIMETER |
| Package 3 width |
30 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
6.595 KILOGRAM |
