XCKP2149M12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

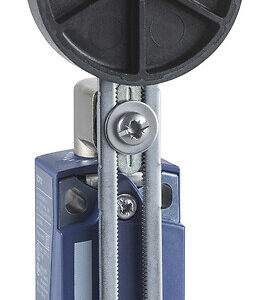

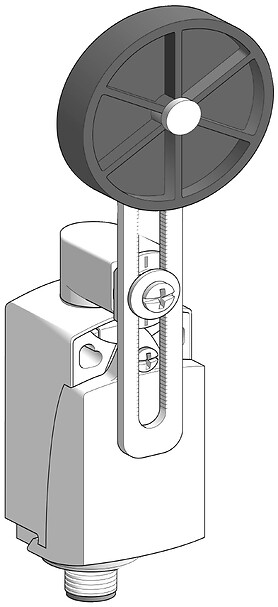

Limit switch, Limit switches XC Standard, XCKP, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, M12
جزئیات محصول
| وزن | 178 گرم |
|---|---|
| ابعاد | 19.5 × 6 × 5.5 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKP |
| Sensor design |
Compact |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Plastic |
| Body material |
Plastic |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
roller diameter 50 mm ,Spring return roller lever thermoplastic variable length |
| Type of approach |
2 directions ,Lateral approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
By 30° cam |
| Electrical connection |
4 pins ,Male connector M12 |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Repeat accuracy |
0.1 mm on the tripping points with 1 million operating cycles |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| IK degree of protection |
IK04 conforming to IEC 62262 |
| Electrical shock protection |
Class II conforming to IEC 61140 ,class II conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
5.5 CENTIMETER |
| Package 1 weight |
178 GRAM |
| Package 1 width |
6 CENTIMETER |
| Package 1 length |
19.5 CENTIMETER |
| Unit type of package 2 |
S02 |
| Number of units in package |
14 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.993 KILOGRAM |
