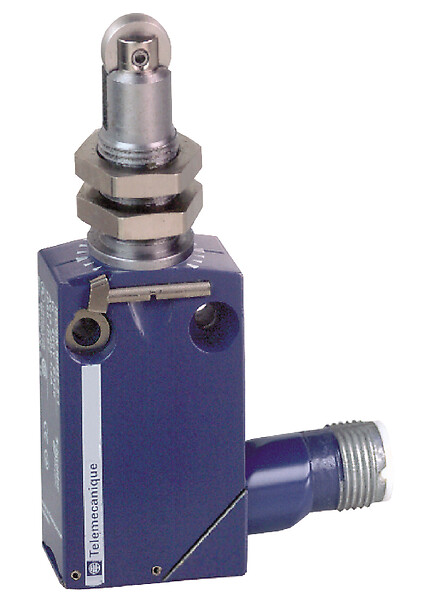

Limit switch, Limit switches XC Standard, XCMD, M12 steel roller plunger, 1C/O, snap, M12
جزئیات محصول
| وزن | 114 گرم |
|---|---|
| ابعاد | 8.8 × 5.3 × 1.8 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCMD |
| Sensor design |
Miniature |
| Body type |
Plug-in body |
| Head type |
M12 plunger head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the head |
| Movement of operating head |
Linear |
| Type of operator |
Spring return roller plunger metal |
| Type of approach |
2 directions ,Lateral approach |
| Contacts type and compositi |
1 C/O |
| Contact operation |
Snap action |
| Switch actuation |
By 30° cam |
| Electrical connection |
4 pins ,Male connector M12 |
| Contacts insulation form |
Za |
| Positive opening |
Without |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP68 conforming to IEC 60529 |
| IK degree of protection |
IK06 conforming to EN 62262 |
| Electrical shock protection |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14EN/IEC 60947-5-1UL 508EN/IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
1.8 CENTIMETER |
| Package 1 width |
5.3 CENTIMETER |
| Package 1 length |
8.8 CENTIMETER |
| Package 1 weight |
114 GRAM |
| Unit type of package 2 |
S01 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.785 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
1280 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
40 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
170.92 KILOGRAM |
