XCMD21G1L2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

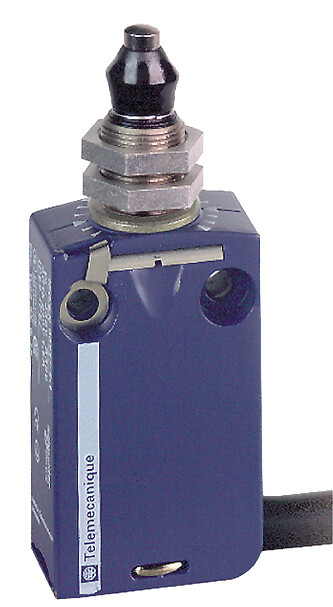

Limit switch, Limit switches XC Standard, XCMD, M16 booted nitrile end plunger, 1NC+1 NO, snap, 2 m
جزئیات محصول
| وزن | 290 گرم |
|---|---|
| ابعاد | 16 × 15 × 2 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCMD |
| Sensor design |
Miniature |
| Body type |
Fixed |
| Head type |
M16 plunger head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the head |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger metal with elastomer boot |
| Type of approach |
1 direction ,Vertical approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Switch actuation |
On end |
| Electrical connection |
Removable cable connector |
| Cable composition |
5 x 0.75 mm² |
| Wire insulation material |
PvR |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Contact code designation |
AC-15 (Ue = 240 V) ,B300 ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP68 conforming to IEC 60529 |
| IK degree of protection |
IK06 conforming to IEC 62262 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
2 CENTIMETER |
| Package 1 width |
15 CENTIMETER |
| Package 1 length |
16 CENTIMETER |
| Package 1 weight |
290 GRAM |
