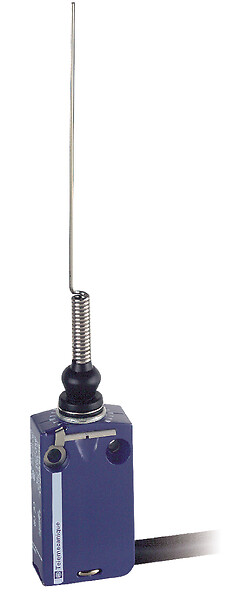

Limit switch XCMD – cat’s whisker – 1NC+1NO – slow – 1 m
جزئیات محصول
| وزن | 680.389 گرم |
|---|---|
| ابعاد | 12.954 × 7.112 × 5.842 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCMD |
| Sensor design |
Miniature |
| Body type |
Fixed |
| Head type |
Multi-directional head |
| Material |
Metal |
| Body material |
Zamak |
| Head material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Multi-directional |
| Type of operator |
Spring return cat''s whisker |
| Type of approach |
Multi-directional approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Slow-break |
| Switch actuation |
By any moving part |
| Electrical connection |
Removable cable connector |
| Cable composition |
5 x 0.75 mm² |
| Wire insulation material |
PvR |
| Contacts insulation form |
Zb |
| Positive opening |
Without |
| Contact code designation |
AC-15 (Ue = 240 V) ,B300 ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 1.5 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP68 conforming to IEC 60529 |
| IK degree of protection |
IK06 conforming to IEC 62262 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5.842 CENTIMETER |
| Package 1 width |
7.112 CENTIMETER |
| Package 1 length |
12.954 CENTIMETER |
| Package 1 weight |
680.389 GRAM |
