XCMD41G1L5EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

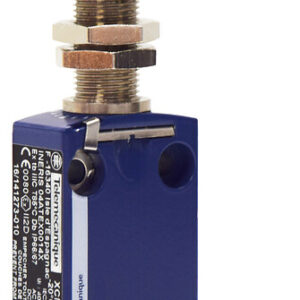

Limit switch, Limit switches XC Standard, XCMD, plunger with elastomer boot, 2NC + 2 NO, ATEX/IECEx
جزئیات محصول
| وزن | 527 گرم |
|---|---|
| ابعاد | 19 × 5 × 23 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCMD |
| Sensor design |
Miniature |
| Body type |
Fixed |
| Head type |
M16 plunger head |
| Material |
Metal |
| Fixing mode |
By the head |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger metal with elastomer boot |
| Switch actuation |
On end |
| Type of approach |
1 direction ,Vertical approach |
| Electrical connection |
Fixed cable |
| Contacts type and compositi |
2 x (1 NC + 1 NO) |
| Contacts insulation form |
Zb |
| Contact operation |
Snap action |
| Positive opening |
With |
| IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| Body material |
Zamak |
| Head material |
Zamak |
| Cable composition |
9 x 0.34 mm² |
| Wire insulation material |
PvR |
| Contact code designation |
AC-15 (Ue = 240 V) ,C300 ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 0.75 A conforming to IEC 60947-5-1 ,Ie = 0.75 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Marking |
II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Shock resistance |
25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Dust zone |
Zone 21 – 22 |
| Product certifications |
INERIS 04ATEX0014XIEC-Ex INE 17.0020X |
| Standards |
IEC 60079-31IEC 60079-0 |
| Directives |
2014/34/EU – ATEX directive |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
23 CENTIMETER |
| Package 1 width |
5 CENTIMETER |
| Package 1 length |
19 CENTIMETER |
| Package 1 weight |
527 GRAM |
