XCMH2115LA1
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

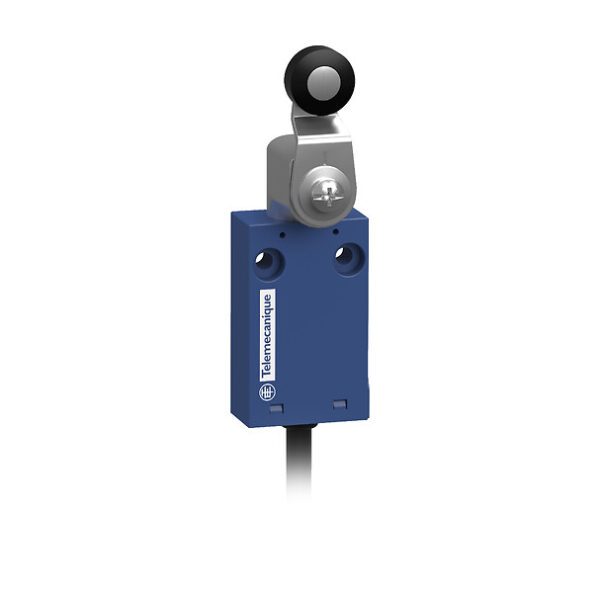

XCMH Limit Switches Miniature Plastic Metal Roller Lever NC + NO Snap L1 Axial
جزئیات محصول
| وزن | 68 گرم |
|---|---|
| ابعاد | 25 × 20 × 1.6 سانتیمتر |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMH |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | 2 directions, Lateral approach |
| Contacts type and compositi | 1 NC + 1 NO |
| Contact operation | Snap action |
| Tracks | 24/31 mm |
| Switch actuation | By 30° cam |
| Electrical connection | Fixed cable |
| Cable composition | 4 x 0.34 mm² |
| Wire insulation material | PvR |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | AC-15 (Ue = 240 V), C300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Ie = 0.75 A conforming to IEC 60947-5-1 appendix A, R300 |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Electrical shock protection | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Protective treatment | TC |
| Product certifications | CSACCCUL |
| Standards | CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 1.6 CENTIMETER |
| Package 1 width | 20 CENTIMETER |
| Package 1 length | 25 CENTIMETER |
