XCMV2102M12

شناسه محصول: TM-SLS-MR-X-XCMV2102M12

برای دریافت مشاوره با ما در ارتباط باشید.

ارسال سریع

با پست پیشتاز

پشتیبانی ۲۴ ساعته

و ۷ روز هفته

تضمین کیفیت

و تضمین اصالت

رضایت مشتریان

افتخار ماست

توضیحات

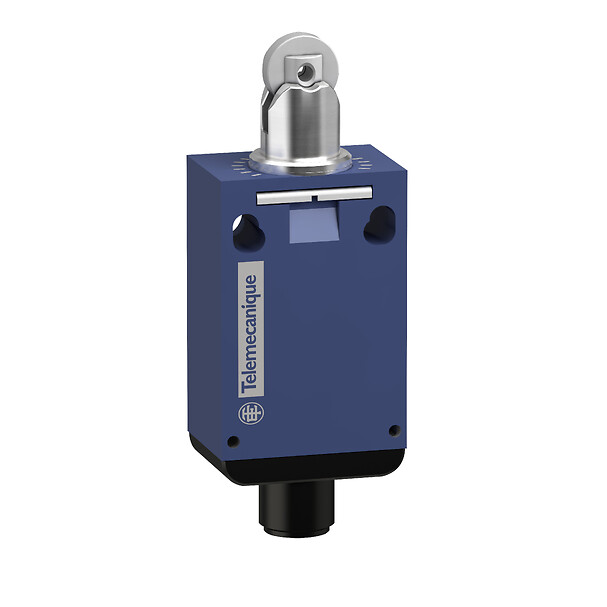

Limit switch, Limit switches XC Standard, XCMD, steel roller plunger, 1NC+1 NO, snap, M12

جزئیات محصول

وزن 140 گرم
ابعاد 17 × 7 × 3 سانتیمتر
Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCMD

Sensor design

Miniature

Body type

Plug-in body

Head type

Plunger head

Material

Metal

Body material

Zamak

Head material

Zamak

Fixing mode

By the body

Movement of operating head

Linear

Type of operator

Spring return roller plunger metal

Type of approach

2 directions

,

Lateral approach

Contacts type and compositi

1 NC + 1 NO

Contact operation

Snap action

Switch actuation

By 30° cam

Electrical connection

4 pins

,

Male connector M12

Contacts insulation form

Zb

Positive opening

With

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Shock resistance

25 gn for 18 ms conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529

,

IP67 conforming to IEC 60529

,

IP69 conforming to IEC 60529

IK degree of protection

IK04 conforming to EN 62262
