XCMV2115D44
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

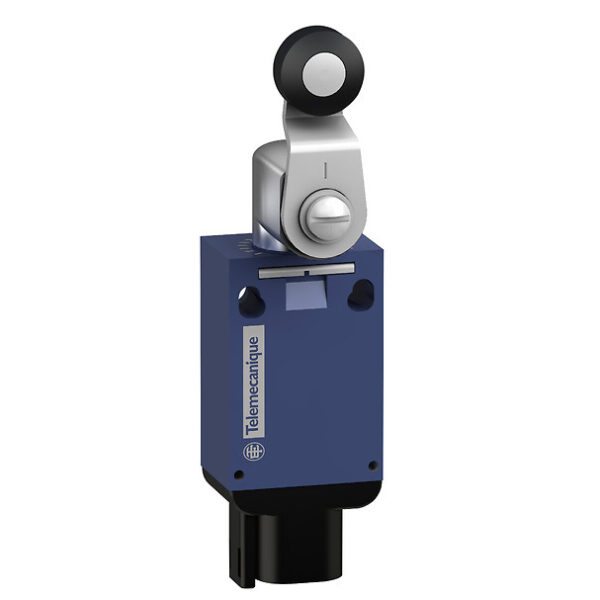

Limit switch, Limit switches XC Standard, XCMD, plastic lever, 1NC+1 NO, snap, DT04 4P
جزئیات محصول
| وزن | 140 گرم |
|---|---|
| ابعاد | 11.43 × 3.81 × 3.81 سانتیمتر |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Plug-in body |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic |
| Type of approach | 2 directions, Lateral approach |
| Contacts type and compositi | 1 NC + 1 NO |
| Contact operation | Snap action |
| Tracks | 24/31 mm |
| Switch actuation | By 30° cam |
| Electrical connection | 4 pins, Male connector DT04-4P |
| Contacts insulation form | Zb |
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529 |
