XCMW115
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

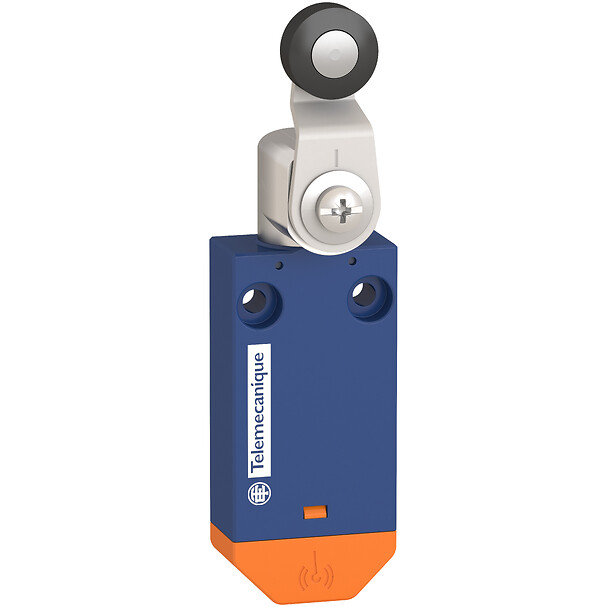

Wireless limit switch, Limit switches XC Standard, XCMW, plastic roller lever
جزئیات محصول
| وزن | 98 گرم |
|---|---|
| ابعاد | 13 × 5 × 3.3 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Miniature format |
| Product or component type |
Wireless limit switch |
| Device short name |
XCMW |
| Sensor design |
Miniature |
| Body type |
Fixed |
| Head type |
Rotary head |
| Body material |
Plastic |
| Head material |
Metal |
| Lever material |
Metal |
| Fixing mode |
By 2 screws |
| Type of operator |
Spring return roller lever thermoplastic |
| Switch actuation |
By 30° cam |
| Communication network type |
ZigBee green power – 2.4 GHz conforming to IEEE 802.15.4 |
| Type of approach |
2 directions ,Lateral approach |
| Electrical composition code |
PW1 |
| Response time |
<= 2 ms |
| Contact operation |
Snap action |
| Operating rate |
60 CYCLE_PER_MINUTE |
| Switching operation per yea |
3600 |
| Electromagnetic compatibili |
distance = 20 m) ,electrostatic discharge immunity test – test level: 6 kV (on contact (on metal parts)) ,electrostatic discharge immunity test – test level: 8 kV (in free air (in insulating parts)) ,immunity for industrial environments ,Radiated emission ,susceptibility to electromagnetic fields – test level: 10 V/m (80…2000 MHz) ,susceptibility to electromagnetic fields – test level: 3 V/m (80…2700 MHz |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
+/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6 ,25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| IK degree of protection |
IK04 conforming to IEC 62262 |
| Directives |
1999/5/EC – R&TTE directive2004/108/EC – electromagnetic compatibility |
| Standards |
IEC 60947-5-1IEC 60947-1 |
| Radio agreement |
FCC conforming to RCM ,IC conforming to RSS |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.3 CENTIMETER |
| Package 1 width |
5 CENTIMETER |
| Unit type of package 2 |
S01 |
| Package 1 length |
13 CENTIMETER |
| Number of units in package |
22 |
| Package 1 weight |
98 GRAM |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.323 KILOGRAM |
