XCNR2502P20
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

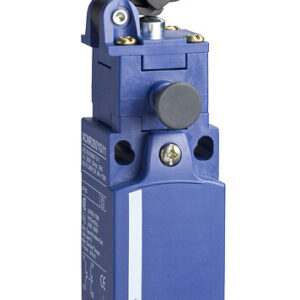

Limit switch, Limit switches XC Standard, XCNR, steel roller plunger, 1NC+1 NO, slow, M20
جزئیات محصول
| وزن | 82 گرم |
|---|---|
| ابعاد | 10.5 × 4 × 3 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCNR |
| Sensor design |
Compact |
| Reset |
With |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Plastic |
| Body material |
Plastic |
| Head material |
Plastic |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return roller plunger plastic |
| Type of approach |
2 directions ,Lateral approach |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
break before make ,Slow-break |
| Switch actuation |
By 30° cam |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Cable entry |
1 entry tapped for M20 x 1.5 cable gland ,cable outer diameter: 7-13 mm |
| Contacts insulation form |
Zb |
| Positive opening |
With |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 250 V) ,Ie = 0.1 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A ,Ithe = 10 A conforming to IEC 60947-5-1 appendix A ,R300 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| IK degree of protection |
IK04 conforming to IEC 62262 |
| Electrical shock protection |
Class II conforming to IEC 61140 ,class II conforming to NF C 20030 |
| Protective treatment |
TC |
| Product certifications |
CSACCCUL |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3 CENTIMETER |
| Package 1 width |
4 CENTIMETER |
| Package 1 length |
10.5 CENTIMETER |
| Package 1 weight |
82 GRAM |
| Unit type of package 2 |
BB1 |
| Package 2 height |
11 CENTIMETER |
| Package 2 width |
16 CENTIMETER |
| Package 2 length |
31 CENTIMETER |
| Package 2 weight |
1.77 KILOGRAM |
| Unit type of package 3 |
S03 |
| Number of units in package |
80 |
| Package 3 height |
30 CENTIMETER |
| Package 3 width |
30 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Package 3 weight |
7.842 KILOGRAM |
