XCNT2121P16
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

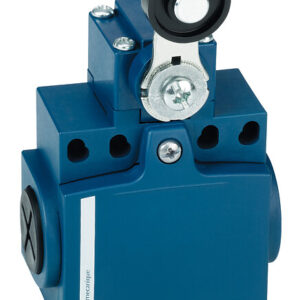

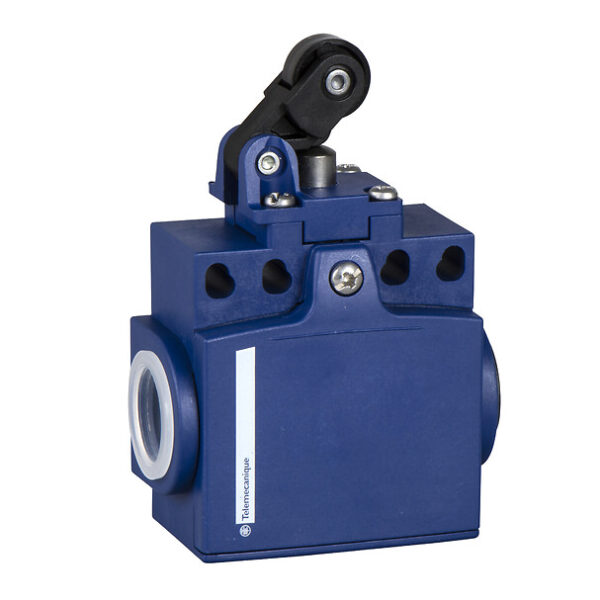

Limit switch, Limit switches XC Standard, XCNT, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, M16
جزئیات محصول
| وزن | 99 گرم |
|---|---|
| ابعاد | 8.7 × 5.8 × 3.1 سانتیمتر |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCNT |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller lever plunger thermoplastic |
| Type of approach | 1 direction, Lateral approach |
| Cable entry | 2 entries tapped for M16 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and compositi | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Electrical connection | clamping capacity: 1 x 0.34…2 x 1.5 mm², Screw-clamp open terminals |
| Contacts insulation form | Zb |
| Contact code designation | A300, AC-15 (Ue = 240 V), DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
