XCRB11
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

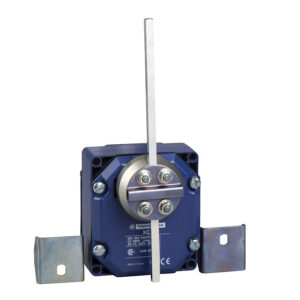

Limit switch, Limit switches XC Standard, XCR, metal spring return rod lever square rod 6 mm, 2X(1NC+NO)
جزئیات محصول
| وزن | 1.021 گرم |
|---|---|
| ابعاد | 23.2 × 10.2 × 9.8 سانتیمتر |
| Range of product |
OsiSense XC |
| Series name |
Special format |
| Product or component type |
Limit switch |
| Product specific applicatio |
For hoisting and mechanical handling applications |
| Device short name |
XCR |
| Sensor design |
– |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Metal |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Spring return rod lever metal square rod 6 mm |
| Type of approach |
2 directions ,Lateral approach |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Contacts type and compositi |
2 x (1 NC + 1 NO) |
| Contact operation |
Snap action |
| Contact block per direction |
1 per direction |
| Positive opening |
With |
| Body material |
Zinc alloy |
| Switch actuation |
By any moving part |
| Cable entry |
1 entry tapped for Pg 13.5 cable gland ,cable outer diameter: 9-12 mm conforming to NF C 68-300 |
| Contacts insulation form |
Zb |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 250 V) ,Ie = 0.27 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A conforming to IEC 60947-5-1 appendix A ,Q300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Shock resistance |
68 gn conforming to IEC 60068-2-27 |
| Vibration resistance |
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP54 conforming to IEC 60529 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Product certifications |
CSACCC |
| Standards |
CSA C22.2 No 14NF C 79-130IEC 60947-5-1IEC 60204-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
9.8 CENTIMETER |
| Package 1 width |
10.2 CENTIMETER |
| Package 1 length |
23.2 CENTIMETER |
| Package 1 weight |
1.021 KILOGRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
5 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
5.41 KILOGRAM |
