XCRB151EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

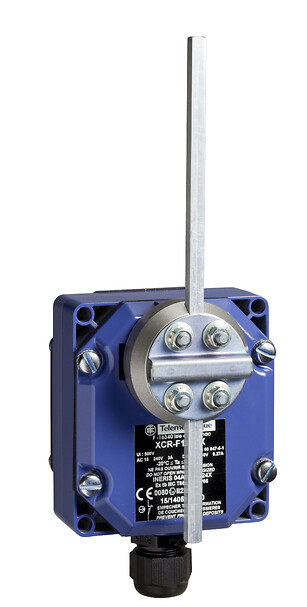

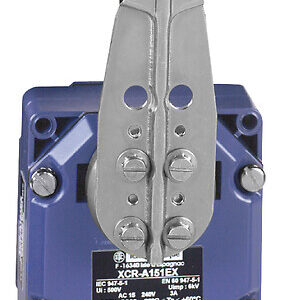

Limit switch, Limit switches XC Standard, XCR, roller lever, 2NC + 2 NO, ATEX/IECEx
جزئیات محصول
| وزن | 1.096 گرم |
|---|---|
| ابعاد | 8.2 × 10.2 × 20.5 سانتیمتر |
| Range of product |
OsiSense ATEX D |
| Series name |
Special format |
| Product or component type |
Limit switch |
| Product specific applicatio |
For hoisting and mechanical handling applications |
| Device short name |
XCR |
| Body type |
Fixed |
| Head type |
Rotary head |
| Material |
Metal |
| Fixing mode |
By the body |
| Movement of operating head |
Rotary |
| Type of operator |
Spring return roller lever thermoplastic large |
| Switch actuation |
By any moving part |
| Type of approach |
2 directions ,Lateral approach |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Contacts type and compositi |
2 x (1 NC + 1 NO) |
| Contacts insulation form |
Zb |
| Contact operation |
Snap action |
| Contact block per direction |
1 per direction |
| Positive opening |
With |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Contact code designation |
A300 ,AC-15 (Ue = 240 V) ,DC-13 (Ue = 250 V) ,Ie = 0.27 A conforming to IEC 60947-5-1 ,Ie = 0.27 A conforming to IEC 60947-5-1 appendix A ,Ie = 3 A conforming to IEC 60947-5-1 ,Ie = 3 A conforming to IEC 60947-5-1 appendix A ,Q300 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 ,25 MOhm conforming to NF C 93-050 method A |
| Marking |
II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Shock resistance |
68 gn conforming to IEC 60068-2-27 |
| Vibration resistance |
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection |
Class I conforming to IEC 60536 ,class I conforming to NF C 20-030 |
| Protective treatment |
TC |
| Dust zone |
Zone 21 – 22 |
| Product certifications |
INERIS 04ATEX0014XIEC-Ex INE 16.0048X |
| Standards |
IEC 60079-31IEC 60079-0 |
| Directives |
2014/34/EU – ATEX directive |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
20.5 CENTIMETER |
| Package 1 width |
10.2 CENTIMETER |
| Package 1 length |
8.2 CENTIMETER |
| Package 1 weight |
1.096 KILOGRAM |
