XCSA711
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

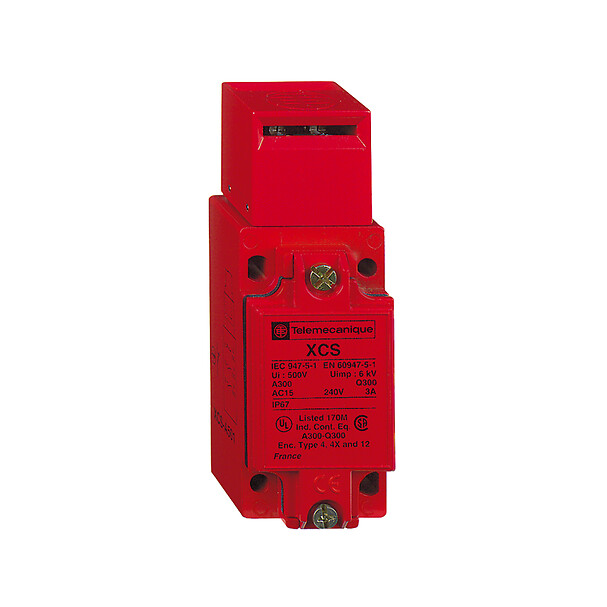

Safety switch, Telemecanique Safety switches XCS, metal XCSA, 2 NC + 1 NO, slow break, 1 entry tapped Pg 13
جزئیات محصول
| وزن | 497 گرم |
|---|---|
| ابعاد | 13 × 7 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Component name |
XCSA |
| Design |
Industrial |
| Material |
Metal |
| Head type |
Key operated turret head |
| Contacts type and compositi |
2 NC + 1 NO |
| Contact operation |
break before make ,Slow-break |
| Cable entry |
1 entry tapped for Pg 13.5 |
| Electrical connection |
clamping capacity: 1 x 0.5…2 x 1.5 mm² with or without cable end ,Terminal |
| Locking options description |
Without locking of actuator |
| Local signalling |
1 LED (orange) for on opening of NC contacts |
| Signalling circuit voltage |
24/48 V |
| Positive opening |
With NC contact |
| Signalling circuit type |
AC/DC |
| Actuator force for extracti |
20 NEWTON |
| Operating rate |
10 cyc/mn for maximum durability |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data |
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material |
Zamak |
| Head material |
Zamak |
| Standards |
CSA C22.2 No 14ISO 12100UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1 |
| Product certifications |
CSAUL |
| Protective treatment |
TC |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class I conforming to IEC 61140 |
| IP degree of protection |
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
7 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
497 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
20 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
10.34 KILOGRAM |
