XCSB502EX
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

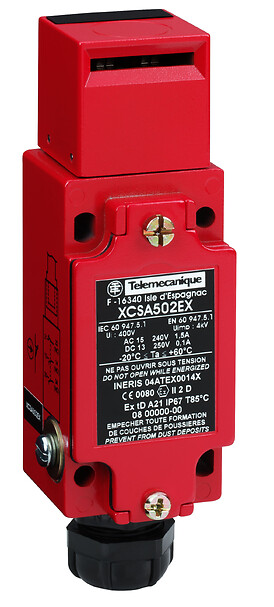

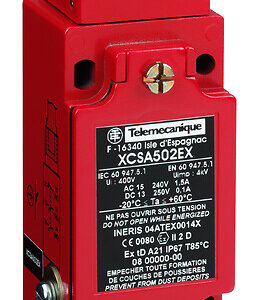

Safety switch, Telemecanique Safety switches XCS, metal key operated XCSA, NC + 2 NO slow break, ATEX/IECEx
جزئیات محصول
| وزن | 508 گرم |
|---|---|
| ابعاد | 15.2 × 8.5 × 8.8 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Safety switch |
| Device short name |
XCSB |
| Material |
Metal |
| Head type |
Key operated turret head |
| Electrical connection |
Terminal |
| Clamping connection capacit |
1 x 0.5…2 x 1.5 mm² with or without cable end |
| Contacts type and compositi |
1 NC + 2 NO |
| Contact operation |
break before make ,Slow-break |
| Positive opening |
With NC contact |
| Locking options description |
unlocking by push-button ,With locking of actuator |
| Local signalling |
Without |
| Contact code designation |
A300 ,AC-15 (Ue = 120 V ,AC-15 (Ue = 240 V ,DC-13 (Ue = 125 V ,DC-13 (Ue = 250 V ,Ie = 0.27 A) conforming to EN/IEC 60947-5-1 ,Ie = 0.55 A) conforming to EN/IEC 60947-5-1 ,Ie = 3 A) conforming to EN/IEC 60947-5-1 ,Ie = 6 A) conforming to EN/IEC 60947-5-1 ,Q300 |
| Actuator force for extracti |
20 NEWTON |
| Operating rate |
10 cyc/mn for maximum durability |
| Body material |
Zamak |
| Head material |
Zamak |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data |
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Protective treatment |
TC |
| Vibration resistance |
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection |
Class I conforming to EN/IEC 60536 |
| IP degree of protection |
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Marking |
II2 D-Ex tb IIIC T85°C Db IP67 |
| Dust zone |
Zone 21 – 22 |
| Product certifications |
INERIS 04ATEX0014XIEC-Ex INE 17.0020X |
| Standards |
EN/IEC 60079-31EN/IEC 60079-0 |
| Directives |
2014/34/EU – ATEX directive |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.8 CENTIMETER |
| Package 1 width |
8.5 CENTIMETER |
| Package 1 length |
15.2 CENTIMETER |
| Package 1 weight |
508 GRAM |
