XCSDMC791L01M8
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

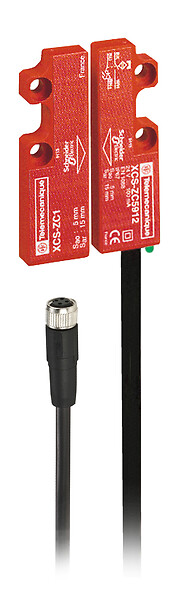

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 2 NC, staggered, M8 0.15 m
جزئیات محصول
| وزن | 44 گرم |
|---|---|
| ابعاد | 17.7 × 13.2 × 2.6 سانتیمتر |
| Range of product |
Telemecanique Safety switches XCS |
| Product or component type |
Coded magnetic switch |
| Component name |
XCSDMC |
| Design |
compact ,Rectangular |
| Size |
51 x 16 x 7 mm |
| Contacts type and compositi |
2 NC |
| Contact operation |
Staggered |
| Material |
Plastic |
| Electrical connection |
Connector on flying lead |
| Connector type |
M8 |
| Local signalling |
1 LED |
| Approach directions |
3 directions |
| [Ue] rated operational volt |
24 V DC |
| [Ie] rated operational curr |
100 MILLIAMPERE |
| Contacts material |
Rhodium |
| Switching capacity in mA |
5…100 mA |
| Insulation resistance |
1000 MOhm |
| Switching frequency |
150 Hz |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data |
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure material |
Thermoplastic PBT |
| Cable material |
PVC |
| Standards |
CSA C22.2 No 14ISO 12100UL 508ISO 14119IEC 60947-5-1IEC 60204-1 |
| Product certifications |
CSAUL |
| Protective treatment |
TH |
| Vibration resistance |
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Sensitivity to magnetic fie |
0.3 MILLITESLA |
| Electrical shock protection |
Class II conforming to IEC 61140 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.6 CENTIMETER |
| Package 1 width |
13.2 CENTIMETER |
| Package 1 length |
17.7 CENTIMETER |
| Package 1 weight |
44 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
40 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.07 KILOGRAM |
