XCSDMP50010

ارسال سریع
با پست پیشتاز

پشتیبانی ۲۴ ساعته
و ۷ روز هفته

تضمین کیفیت
و تضمین اصالت

رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

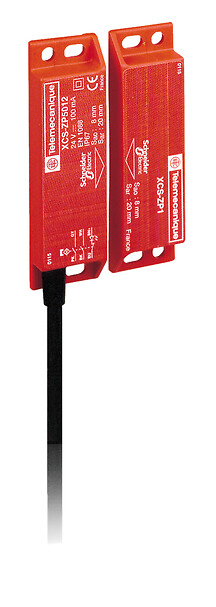

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMP, 1 NC + 2 NO, 1 NO staggered, 10 m
جزئیات محصول
وزن | 613 گرم |
---|---|
ابعاد | 20.6 × 20 × 4.6 سانتیمتر |
Range of product |
Telemecanique Safety switches XCS |
Product or component type |
Coded magnetic switch |
Component name |
XCSDMP |
Design |
Rectangular ,standard |
Size |
88 x 25 x 13 mm |
Contacts type and compositi |
1 NC + 2 NO |
Contact operation |
1 NO staggered |
Material |
Plastic |
Electrical connection |
Pre-cabled |
Cable composition |
6 x 0.25 mm² |
Approach directions |
3 directions |
[Ue] rated operational volt |
24 V DC |
[Ie] rated operational curr |
100 MILLIAMPERE |
Contacts material |
Rhodium |
Switching capacity in mA |
0.1…100 mA |
Insulation resistance |
1000 MOhm |
Switching frequency |
150 Hz |
Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
Safety reliability data |
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
Enclosure material |
Thermoplastic PBT |
Cable material |
PVC |
Standards |
CSA C22.2 No 14ISO 12100UL 508ISO 14119IEC 60947-5-1IEC 60204-1 |
Product certifications |
CSAUL |
Protective treatment |
TH |
Vibration resistance |
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
Sensitivity to magnetic fie |
0.3 MILLITESLA |
Electrical shock protection |
Class II conforming to IEC 61140 |
IP degree of protection |
IP66 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
Unit type of package 1 |
PCE |
Package 1 height |
4.6 CENTIMETER |
Package 1 width |
20 CENTIMETER |
Package 1 length |
20.6 CENTIMETER |
Package 1 weight |
613 GRAM |
Unit type of package 2 |
S02 |
Number of units in package |
8 |
Package 2 height |
15 CENTIMETER |
Package 2 width |
30 CENTIMETER |
Package 2 length |
40 CENTIMETER |
Package 2 weight |
5.18 KILOGRAM |
